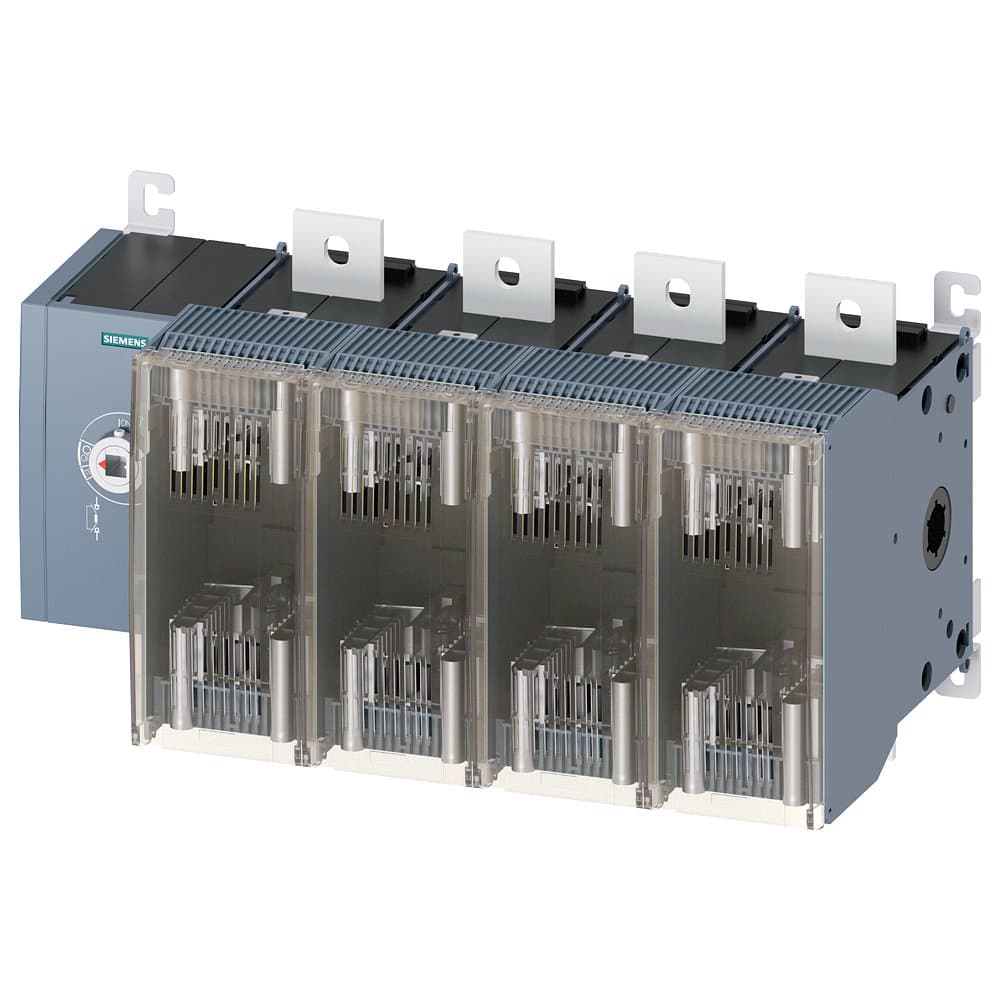

3KF5480-4LF11
Product ID:213439
Updated: 2026/6/30
Key Features
- 1Protect circuits reliably against short circuits and overloads up to 800A.
- 2Save valuable panel space with a compact and flat terminal design.
- 3Handle high-current applications efficiently using the 4-pole configuration.
- 4Operate the switch easily with the left-hand sidewall drive mechanism.
- 5Ensure installation safety and compliance with UL certification standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KF LV HRC (General Fuse), Rated Current 800A, Basic Unit - Side Operation Mechanism, No Handle, Operation Mechanism Module Located on the Left Side, Surface Mount |
| Mounting Type | Surface mount | Fuse Specification | Size: 2/3 |
| Terminal Type | Flat terminal | Poles | 4P |
| In(A) | 800 | Specification | 3KF5_800 |
| Switch Type | Basic unit, side operation mechanism, no handle, operation mechanism module located on the left side of the switch | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model | 3KF5480-4LF11 |
Specifications may be subject to change without notice
