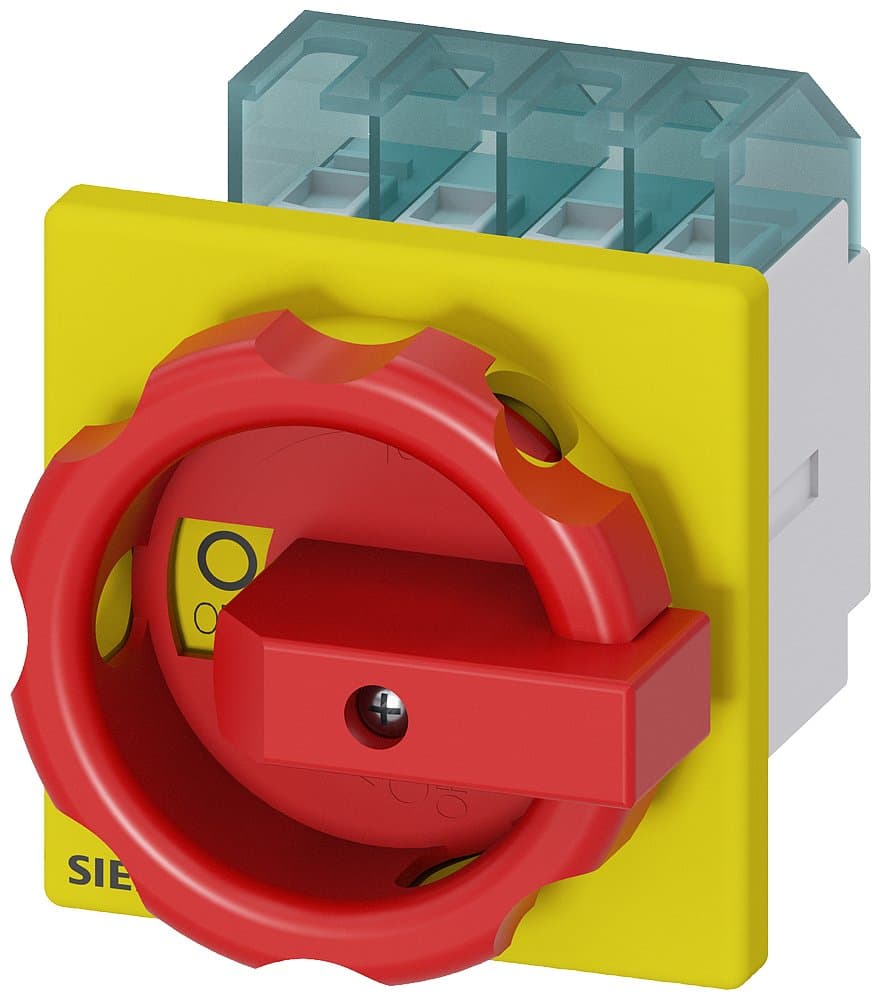

3LD2003-0TK53
Product ID:212946
Updated: 2026/4/3
Key Features
- 1Ensure reliable emergency switching-off in industrial control panels. 2、Handle high currents up to 23A and 7.5kW at 400V safely. 3、Install quickly with the pre-mounted front and rotary drive design. 4、Meet safety standards with the trusted Siemens SENTRON product line. 5、Simplify procurement with available stock and direct support.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-3/5.5KW; AC-23A/7.5KW | Installation Type: | Flush mounted cabinet door with four-hole installation |
| Others: | AC-3/5.5KW; AC-23A/7.5KW | Poles: | 3P |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2003-0TK53 |
Specifications may be subject to change without notice
