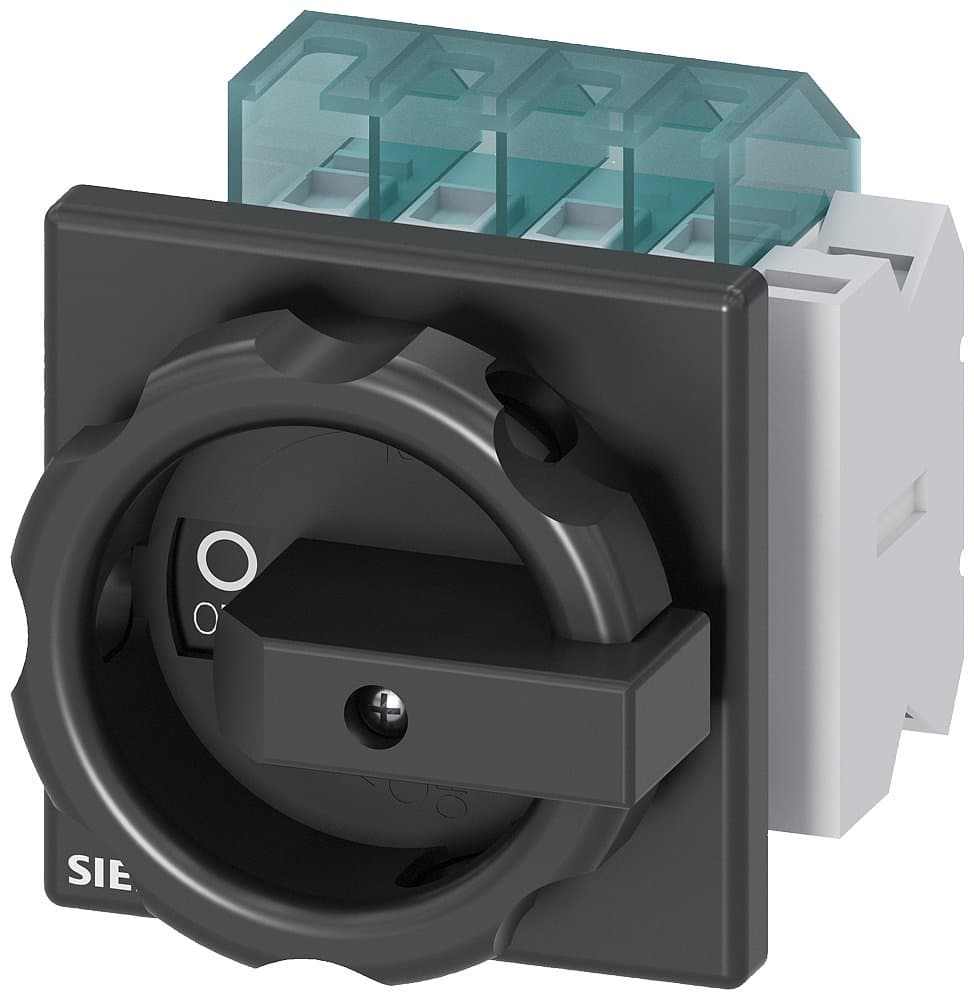

3LD2003-1TP51
Product ID:150945
Updated: 2026/7/3
Key Features
- 1Rated for high-voltage applications up to 690V AC.
- 2Configure with 1NO+1NC contacts for versatile control.
- 3Handle a wide amperage range from 16A to 125A.
- 4Utilize an encapsulated design for enhanced durability.
- 5Choose floor or four-hole front mounting options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole mounting |
| Other: | AC-23A/7.5KW; 1NO+1NC | Number of Poles: | 3P |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2003-1TP51 |
Specifications may be subject to change without notice
