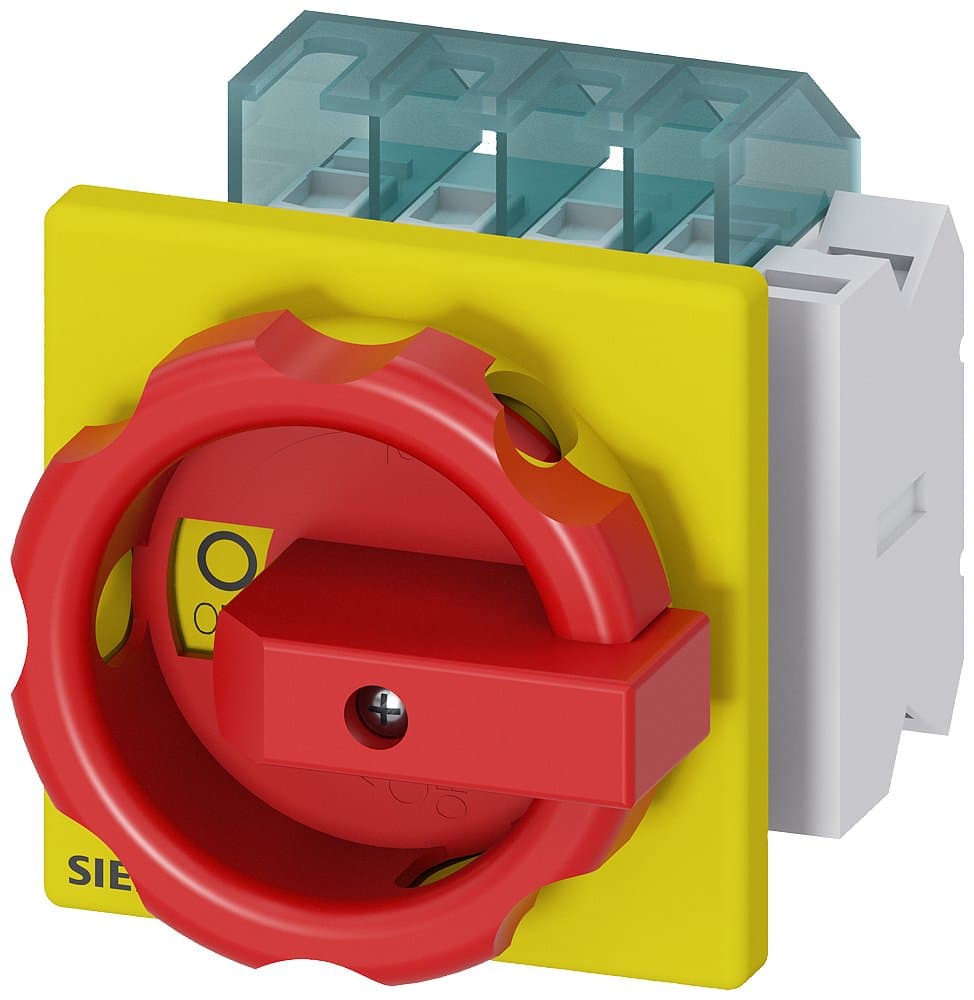

3LD2003-1TP53
Product ID:205066
Updated: 2026/7/3
Key Features
- 1Execute quick and safe shutdowns in emergency situations.
- 2Handle up to 16 A for robust performance across applications.
- 3Access convenient front-mounted design for easy operation.
- 4Integrate into multiple industrial control systems seamlessly.
- 5Meet stringent safety requirements for reliable, compliant operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, red/yellow handle, flush-mounted, four-hole installation on cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type | Flush-mounted cabinet door with four-hole installation |
| Other | AC-23A/7.5KW; 1NO+1NC | Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2003-1TP53 |
Specifications may be subject to change without notice
