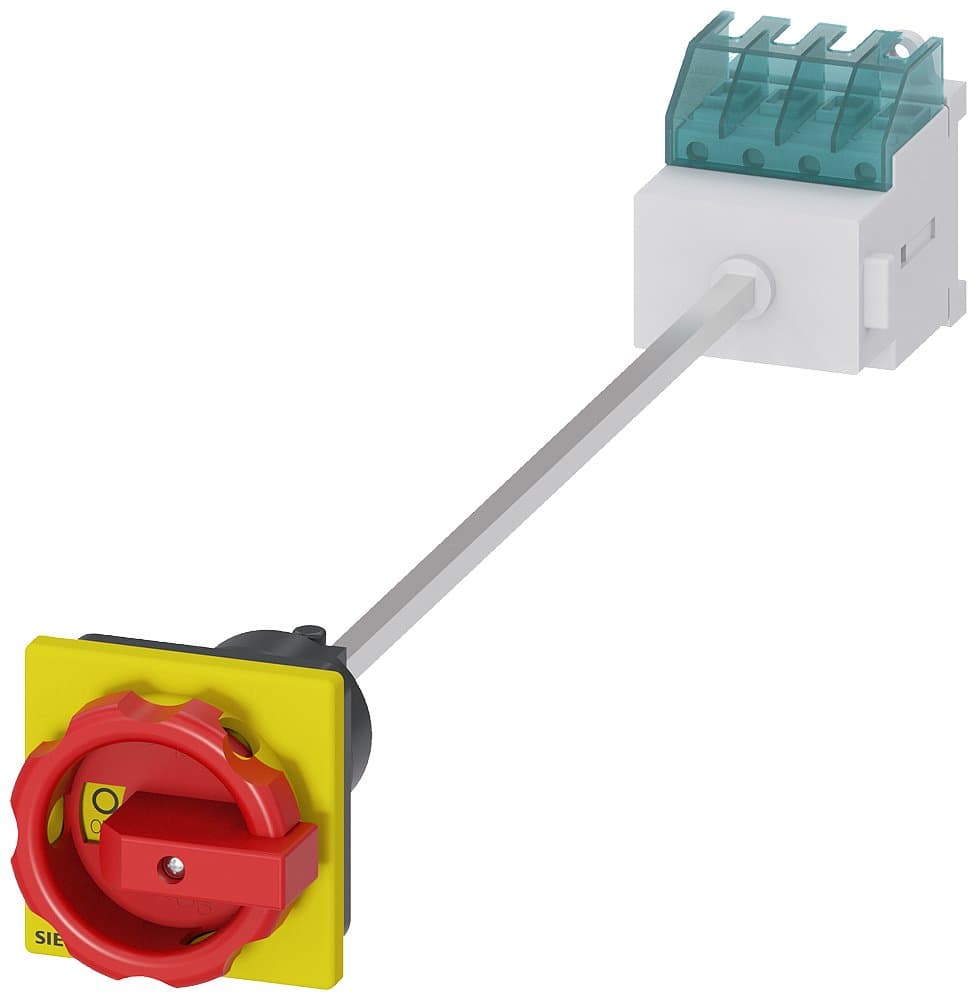

3LD2013-0TK53
Product ID:145895
Updated: 2026/4/6
Key Features
- 1Meet high safety standards with EN 60204 compliance for reliable operation. 2、Achieve efficient floor mounting with integrated door for easy access. 3、Ensure robust protection using an IP65-rated enclosure against dust and water. 4、Apply versatilely across multiple demanding industrial applications and settings. 5、Deliver reliable 7.5 kW performance at AC-23 A 400 V for consistent power.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/7.5KW | Installation Type: | Base-mounted installation, four-hole mounting on cabinet door |
| Other: | AC-23A/7.5KW | Poles: | 3P |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2013-0TK53 |
Specifications may be subject to change without notice
