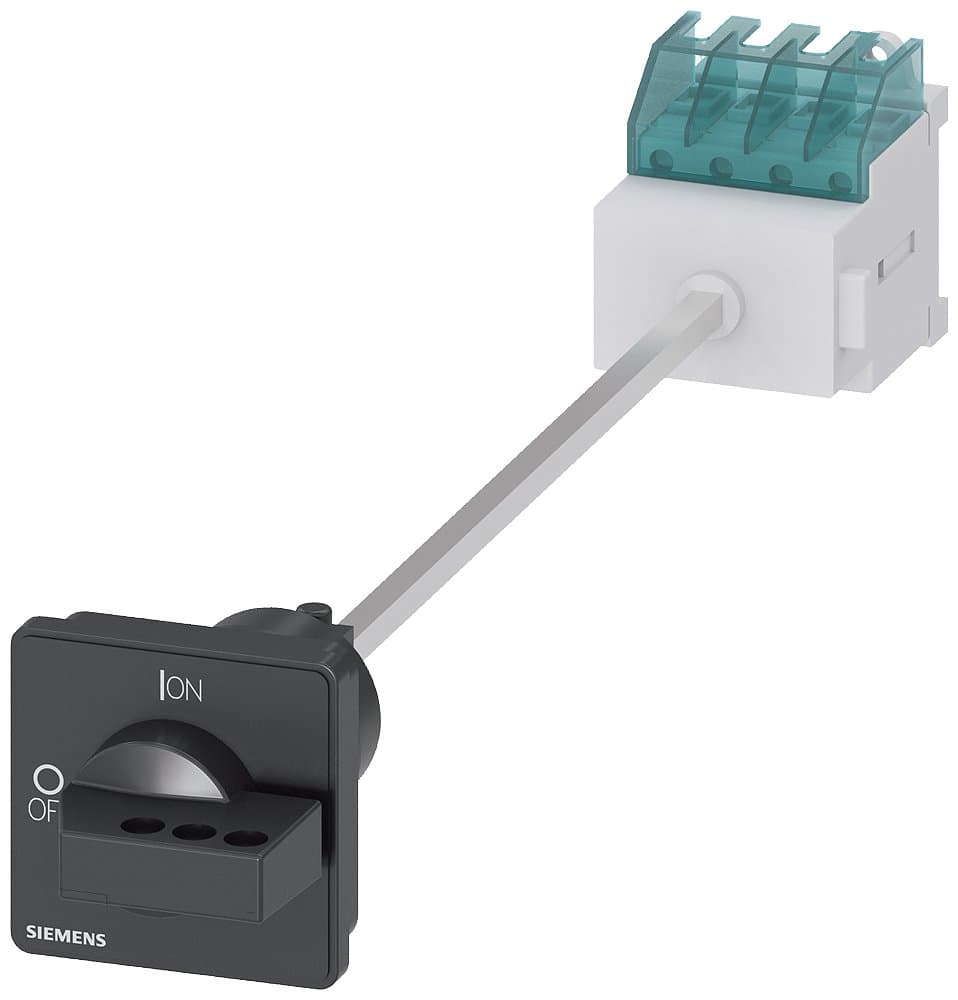

3LD2017-0TK11
Product ID:104811
Updated: 2026/7/2
Key Features
- 1Ensure reliable 16A circuit isolation with robust 3-pole design.
- 2Handle up to 7.5 kW operating power at 400V AC efficiently.
- 3Integrate safety via door interlock to disable power during access.
- 4Simplify installation with bottom-mounted and 4-hole fixing options.
- 5Benefit from durable construction for harsh industrial environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, detachable door-coupled rotary operation mechanism, black handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/7.5KW, UL508 Certification | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
| Other | AC-23A/7.5KW, UL508 Certification | Number of Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | Detachable door-coupled rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2017-0TK11 |
Specifications may be subject to change without notice
