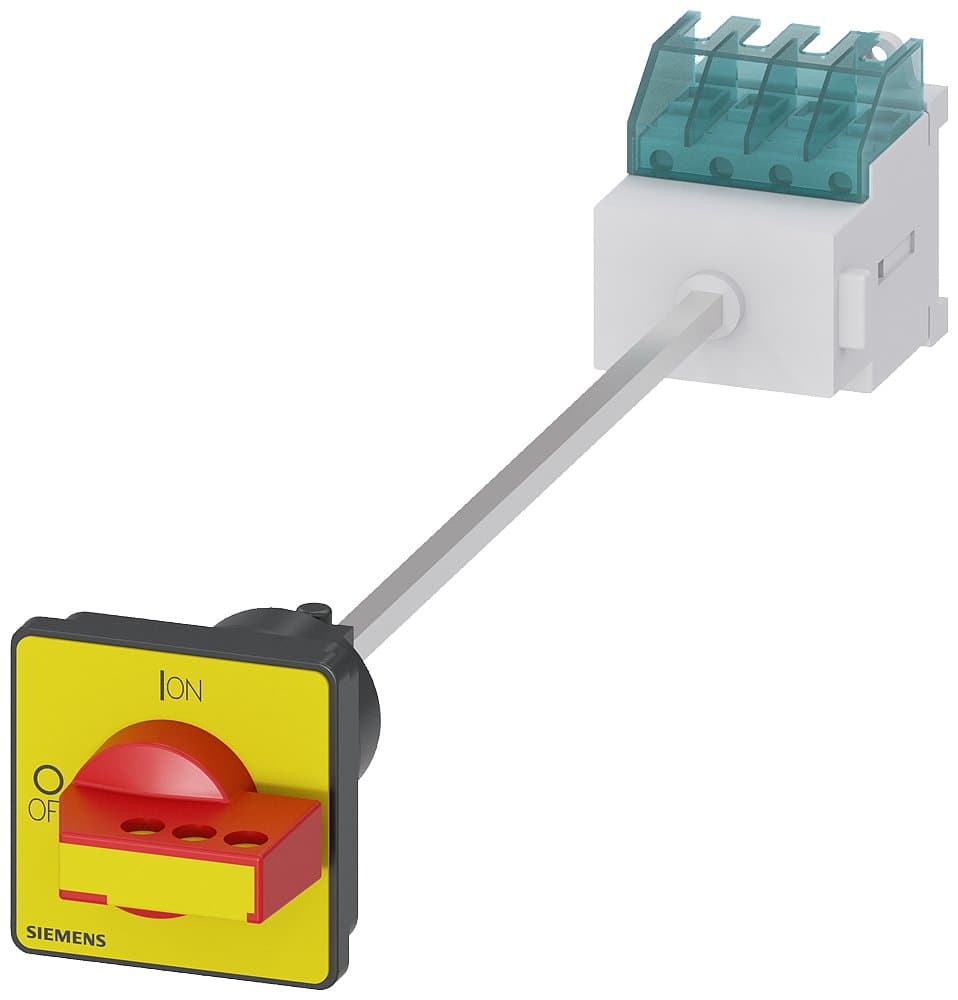

3LD2017-0TK13
Product ID:221597
Updated: 2026/4/3
Key Features
- 1Ensure immediate emergency stop shutdown for critical safety. 2、Install easily with floor mounting and secure door coupling. 3、Handle high current loads efficiently with a 3-pole design. 4、Rated for 16A to suit diverse industrial applications. 5、Manage 7.5kW loads at 400V AC for significant power.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with removable door-coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/7.5KW, UL508 certified | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
| Other | AC-23A/7.5KW, UL508 certified | Number of Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | Removable door-coupled rotary operation mechanism with red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2017-0TK13 |
Specifications may be subject to change without notice
