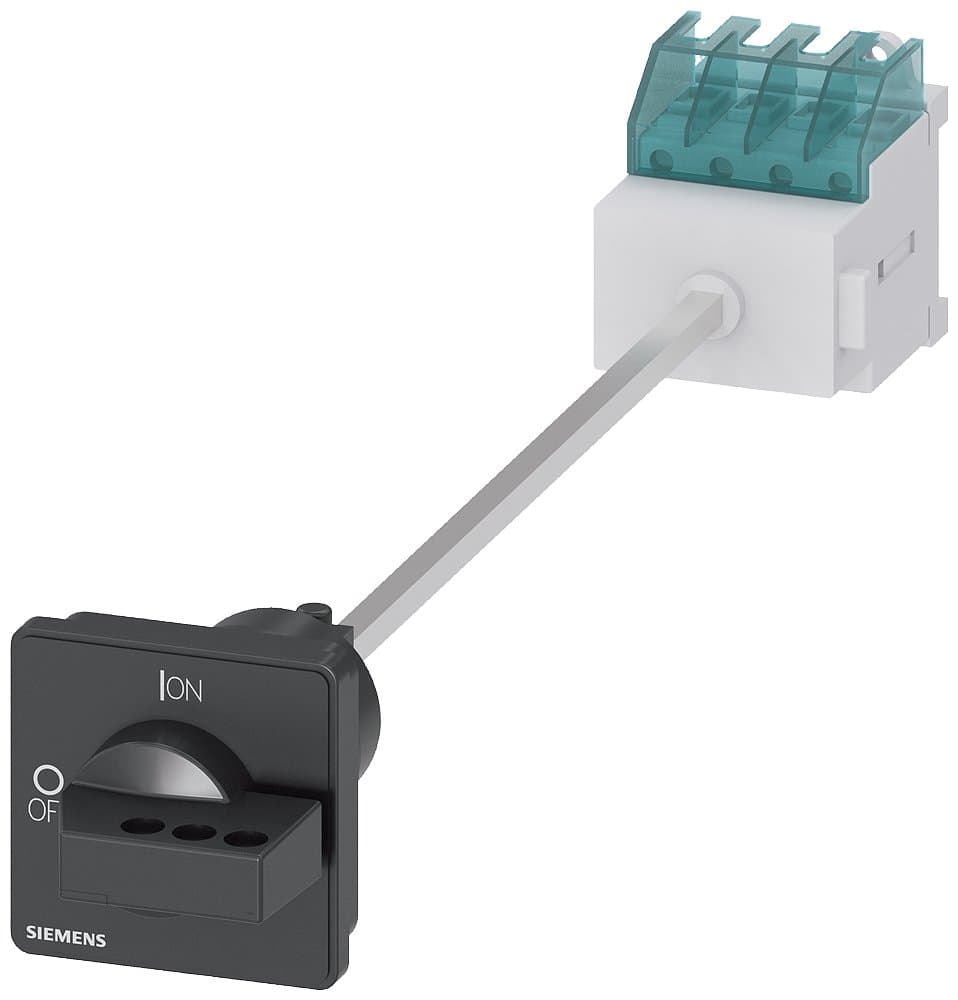

3LD2017-1TL11
Product ID:116984
Updated: 2026/7/2
Key Features
- 1Ensure reliable main switching for high-voltage applications.
- 2Enhance safety with a 4-pole design for better control.
- 3Distribute power efficiently using a 16A current rating.
- 4Achieve robust 7.5 kW performance at 400V AC.
- 5Simplify installation with floor mounting and door coupling.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 16A, 3P+N, With Removable Door Coupled Rotary Operating Mechanism, Black Handle, Base-mounted Installation, Cabinet Door Four-Hole Installation, AC-23A/7.5KW, UL508 Certified | Installation Type: | Base-mounted Installation, Cabinet Door Four-Hole Installation |
| Other: | AC-23A/7.5KW, UL508 Certified | Number of Poles: | 3P+N |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With Removable Door Coupled Rotary Operating Mechanism, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2017-1TL11 |
Specifications may be subject to change without notice
