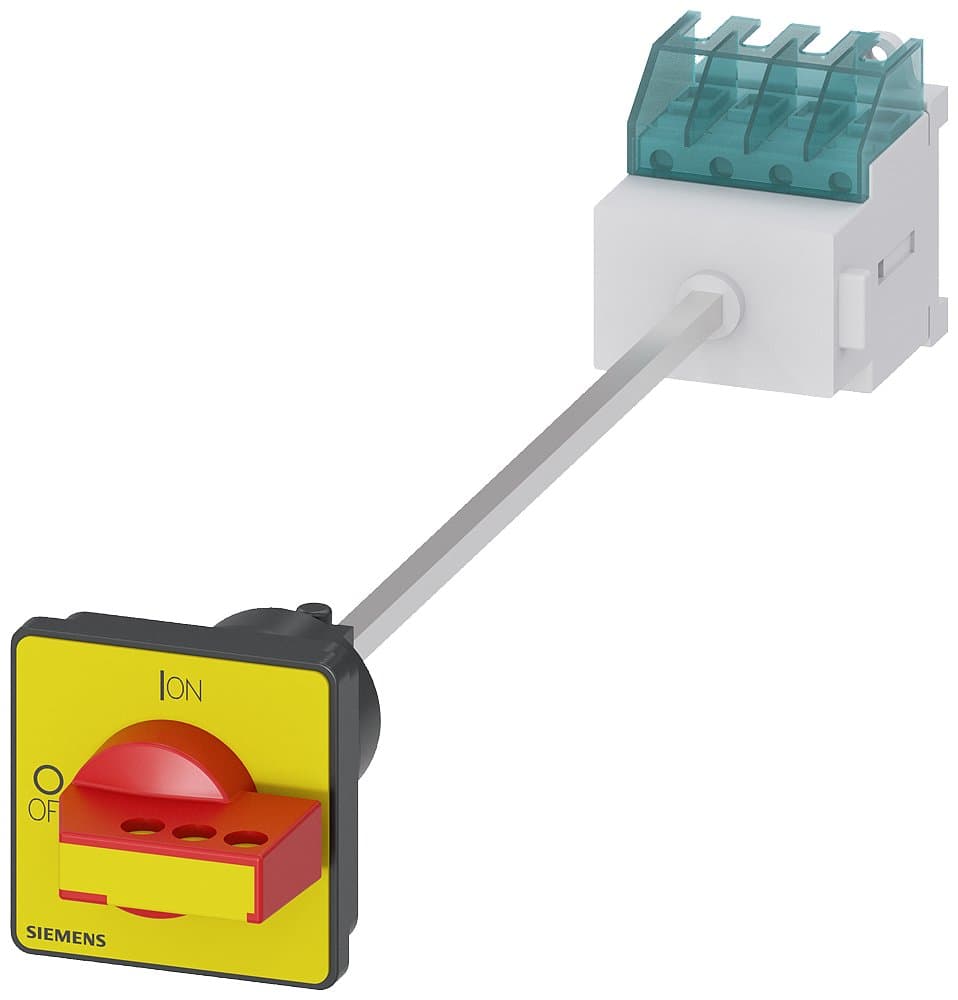

3LD2017-1TL13
Product ID:200739
Updated: 2026/4/4
Key Features
- 1Ensure reliable emergency shutdown with an immediate power cutoff switch. 2、Simplify floor mounting using the integrated door coupling mechanism. 3、Handle high currents up to 16A for demanding industrial applications. 4、Integrate easily into panels with a compact and space-saving design. 5、Protect against electric shock and short circuits for enhanced safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P+N, with removable door-coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/7.5KW, UL508 certified | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
| Other | AC-23A/7.5KW, UL508 certified | Number of Poles | 3P+N |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With removable door-coupled rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2017-1TL13 |
Specifications may be subject to change without notice
