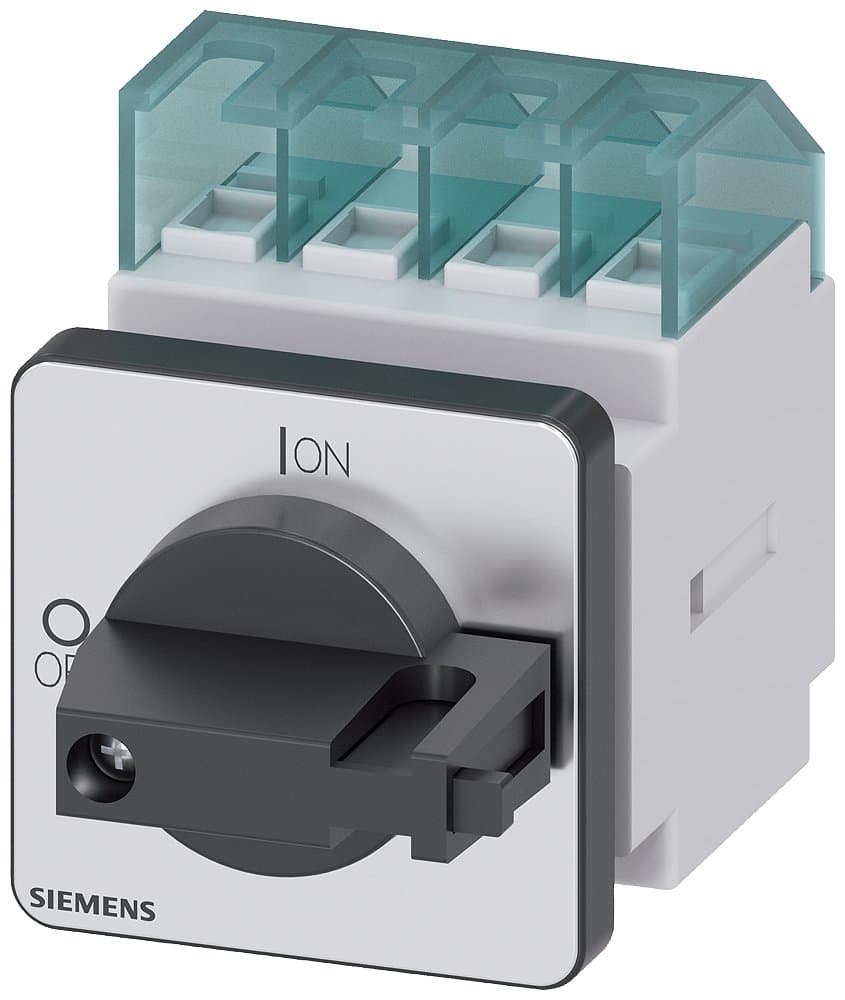

3LD2022-1TL11
Product ID:118134
Updated: 2026/4/3
Key Features
- 1Serve as a reliable main switch with 16 A Iu rating. 2、Feature a front-mounted, knob-operated mechanism for secure and easy operation. 3、Enable flexible installation for both floor and panel door front mounting. 4、Provide IP65-rated and CSA-certified handles for Type 1, 4X, and 12 applications. 5、Act as a safe enclosure disconnect when upstream short circuit protection exists.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P+N, with selector switch operation mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-23A/7.5KW | Installation Type | Flush mounted cabinet door with four-hole installation |
| Other | AC-23A/7.5KW | Number of Poles | 3P+N |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With selector switch operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2022-1TL11 |
Specifications may be subject to change without notice
