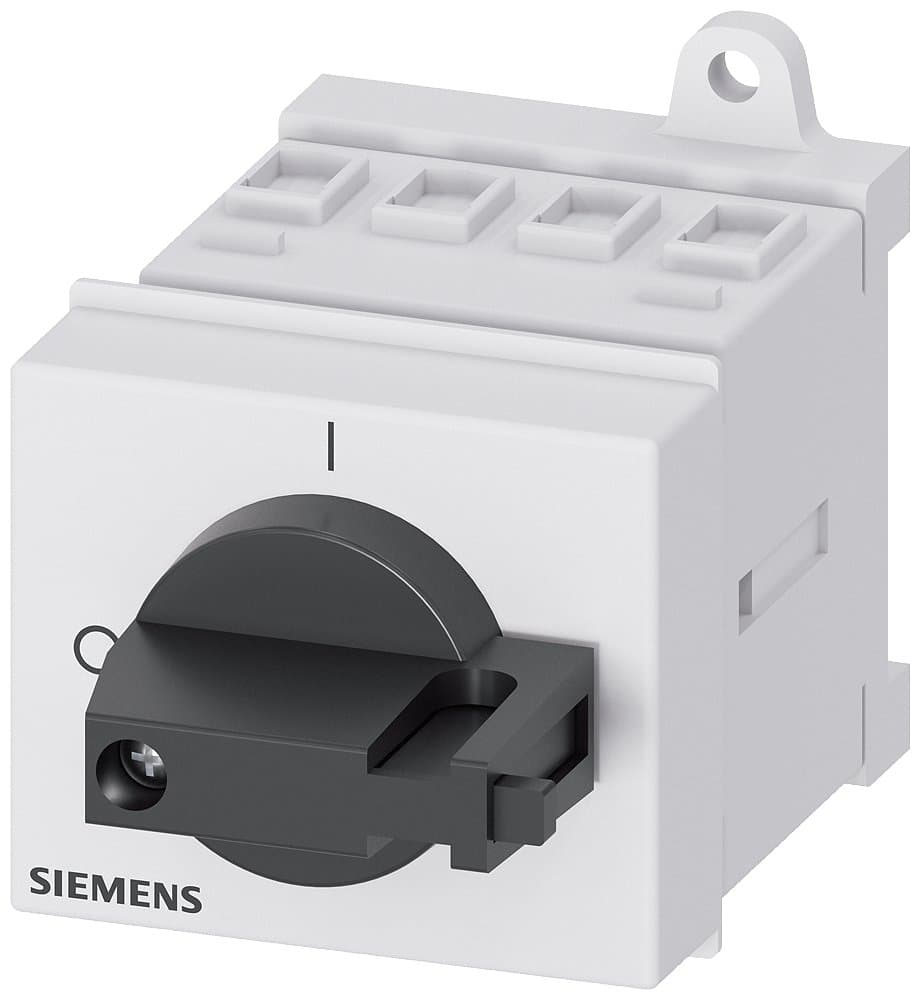

3LD2030-1TL11
Product ID:209436
Updated: 2026/4/5
Key Features
- 1Ensure safe switching under load with reliable operation. 2、Handle up to 16 A and 7.5 kW at 400V AC-23. 3、Install easily in distribution boards with versatile mounting. 4、Meet IEC 60947-3 and UL 508 safety standards. 5、Withstand harsh environments using robust construction materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 16A, 3P+N, With Shield Plate and Selector Switch, Black Handle, Distribution Panel Mounting, AC-23A/7.5KW | Mounting Type: | Distribution Panel Mounting |
| Other: | AC-23A/7.5KW | Number of Poles: | 3P+N |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With Shield Plate and Selector Switch, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2030-1TL11 |
Specifications may be subject to change without notice
