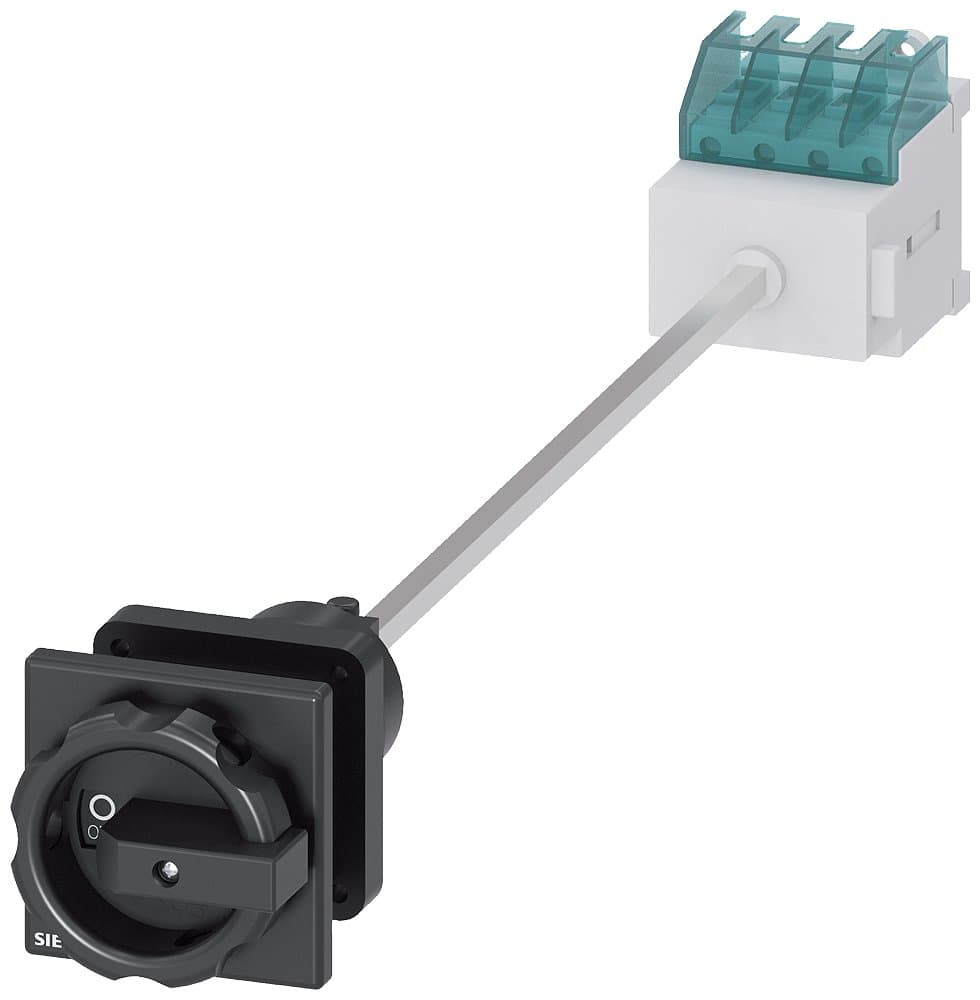

3LD2044-1TL51
Product ID:194645
Updated: 2026/4/4
Key Features
- 1Ensure secure electrical connections with a reliable 4-pole design. 2、Distribute power efficiently using a 16 A current rating. 3、Handle high-performance applications with 7.5 kW at 400 V AC. 4、Simplify installation via floor mounting and door coupling. 5、Achieve long-lasting reliability through durable industrial construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P+N, rotary operation mechanism with door coupling, black handle, base-mounted installation, center hole in cabinet door mounting, AC-23A/7.5KW | Installation Type | Base-mounted installation, center hole in cabinet door mounting |
| Other | AC-23A/7.5KW | Number of Poles | 3P+N |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | Rotary operation mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2044-1TL51 |
Specifications may be subject to change without notice
