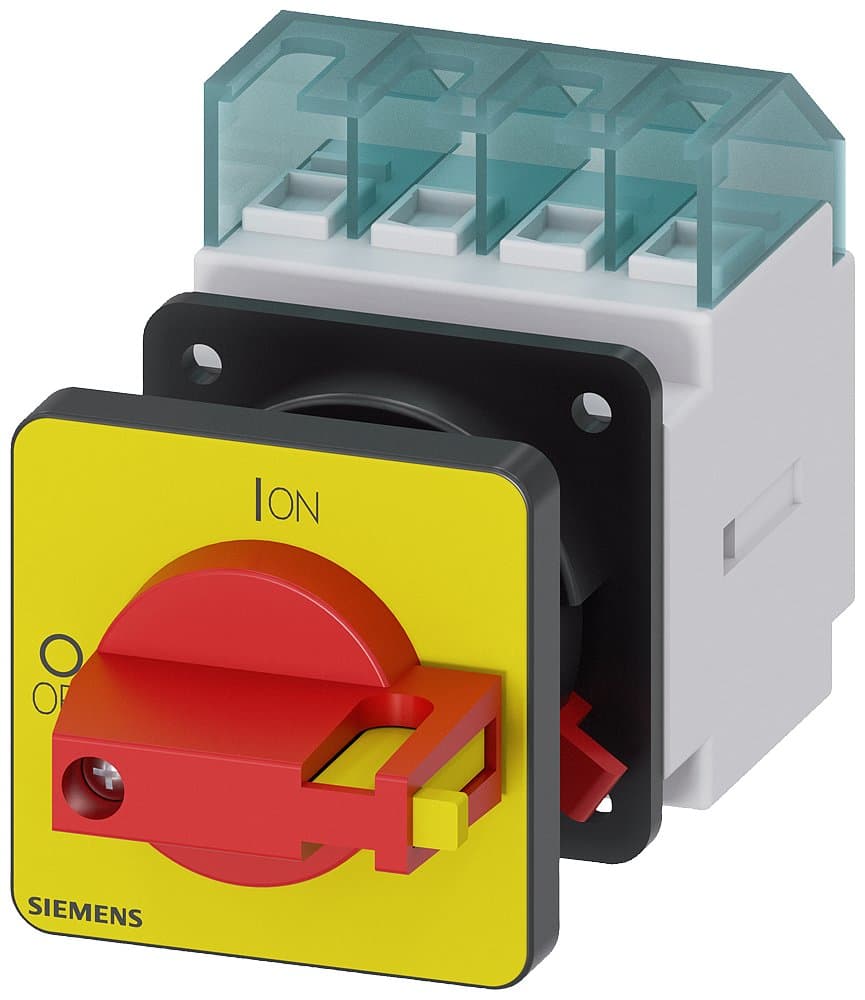

3LD2050-0TK13
Product ID:212491
Updated: 2026/7/1
Key Features
- 1Ensure safe, immediate emergency shutdown.
- 2Handle up to 16A current and 7.5kW operating power.
- 3Mount conveniently inside panel doors for access.
- 4Operate easily with a simple knob mechanism.
- 5Meet IEC 60947-3 and UL 508 safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V) | 690 | Insulation Voltage(V) | 690 |
| Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 16A, 3P, With Selector Switch Operation Mechanism, Red/Yellow Handle, Flush Mounting, Cabinet Door Central Hole Installation, AC-23A/7.5KW | Installation Type | Flush Mounting in Cabinet Door Central Hole |
| Other | AC-23A/7.5KW | Number of Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With Selector Switch Operation Mechanism, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2050-0TK13 |
Specifications may be subject to change without notice
