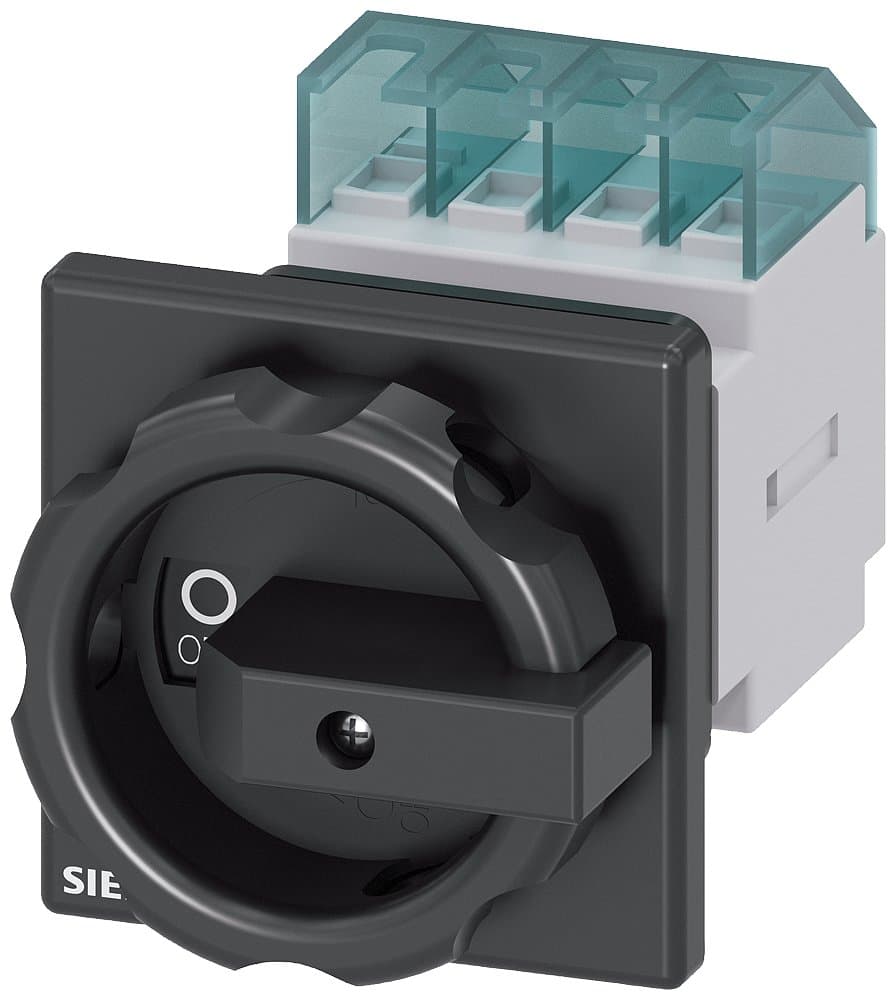

3LD2054-0TK51
Product ID:166719
Updated: 2026/7/3
Key Features
- 1Handle high-power loads reliably with a 16A current rating.
- 2Deliver 7.5 kW operating power at AC-23 A 400V.
- 3Simplify installation using the front-mounted rotary drive.
- 4Ensure secure mounting with the 22.5mm center fixed handle.
- 5Rely on the robust 3-pole design for main switch duties.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush-mounted, center hole installation on cabinet door, AC-3/5.5KW; AC-23A/7.5KW | Installation Type | Flush-mounted cabinet door center hole installation |
| Other | AC-3/5.5KW; AC-23A/7.5KW | Number of Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2054-0TK51 |
Specifications may be subject to change without notice
