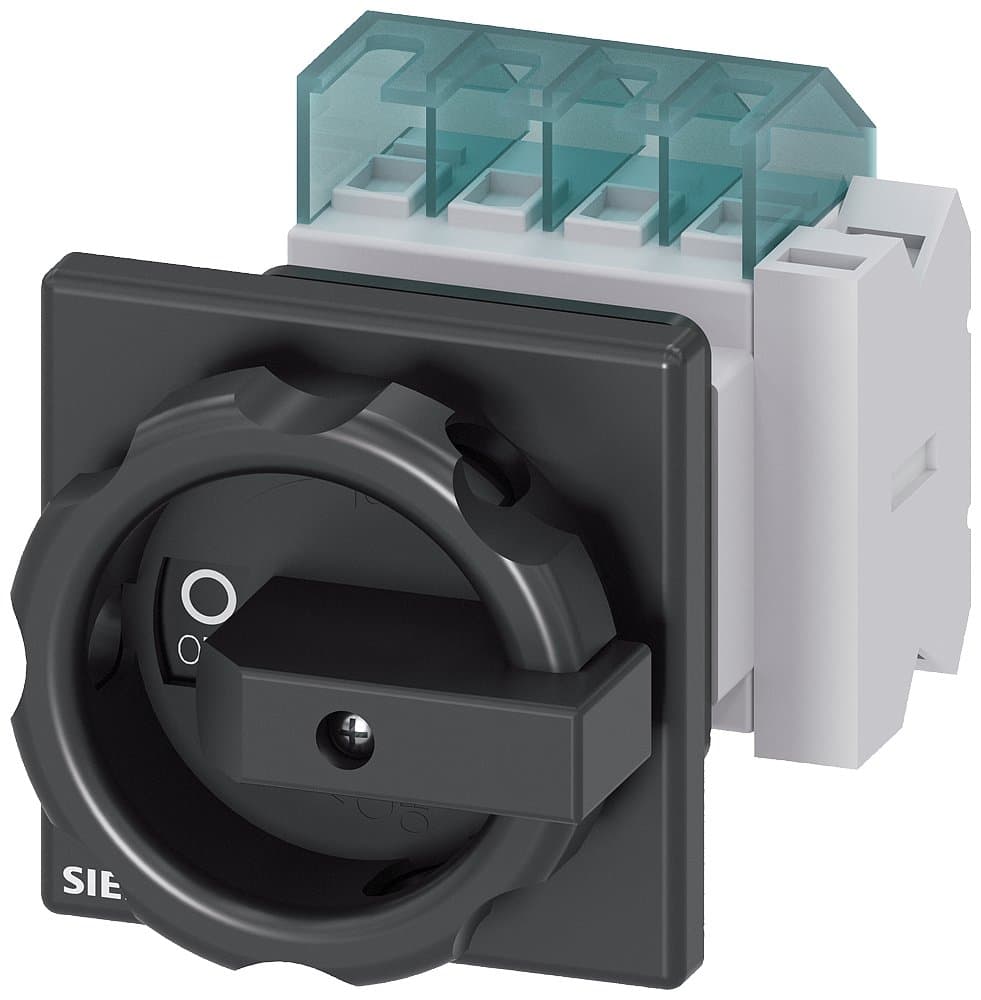

3LD2054-1TP51
Product ID:106965
Updated: 2026/7/2
Key Features
- 1Ensure reliable main circuit isolation with this 3-pole switch disconnector.
- 2Handle up to 16A current and 7.5kW operating power at 400V AC.
- 3Protect against dust and water ingress with a durable IP65-rated enclosure.
- 4Simplify panel installation using the front-mounted design and central handle.
- 5Achieve secure operation with the rotary drive and black center-mounted handle.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, black handle, flush mounted, cabinet door center hole installation, AC-23A/7.5KW; 1NO+1NC | Installation Type: | Flush mounting in cabinet door center hole |
| Other: | AC-23A/7.5KW; 1NO+1NC | Number of Poles: | 3P |
| In(A): | 16 | Specification: | 3LD20【16A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2054-1TP51 |
Specifications may be subject to change without notice
