3LD2054-1TP53
Product ID:153502
Updated: 2026/7/3
Key Features
- 1Protect users from electric shock by switching under load.
- 2Ensure reliable performance with 16A uninterrupted current.
- 3Install flexibly on rails, floor, or front-mounted panels.
- 4Safeguard against environmental factors with IP65 protection.
- 5Meet safety standards with UL 508 and UL 60947-4-1 certification.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

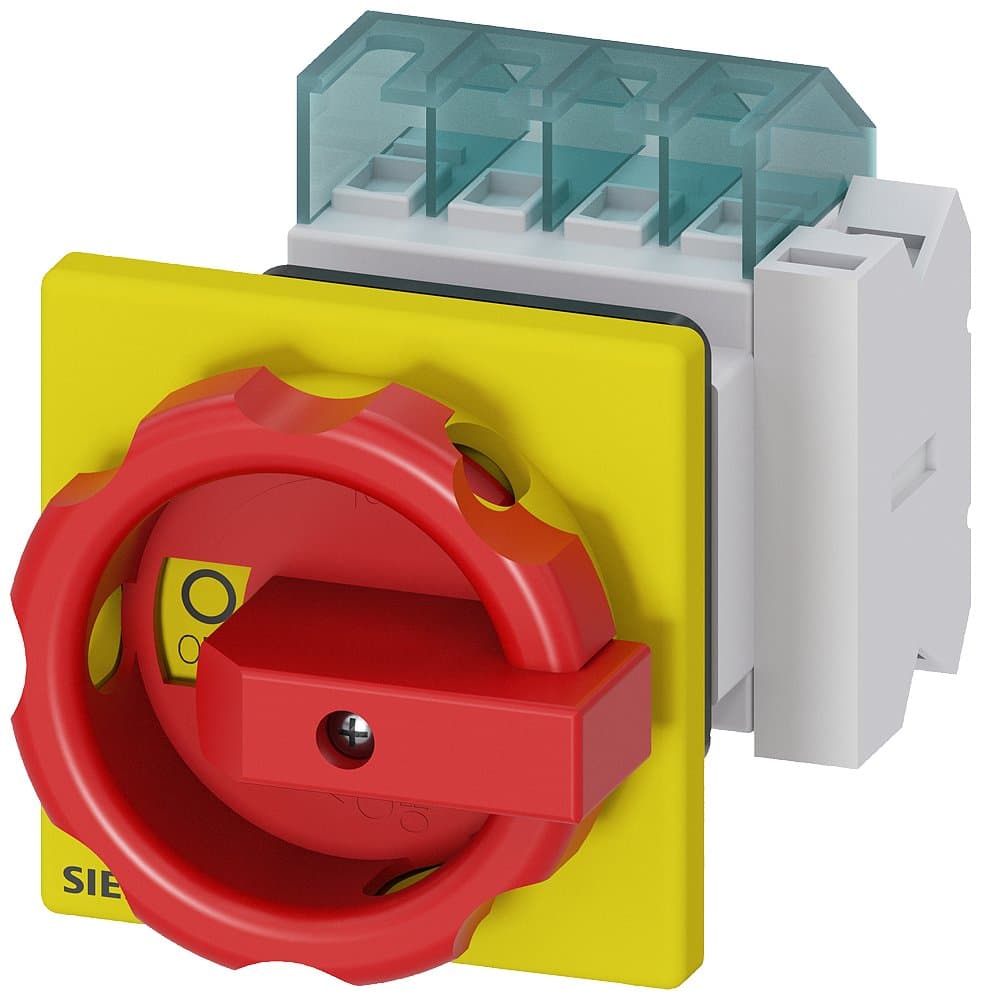

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 16A, 3P, with rotary operating mechanism, red/yellow handle, mounting in the center hole of the cabinet door, AC-23A/7.5KW; 1NO+1NC | Installation Type | Mounting in the center hole of the cabinet door |
| Other | AC-23A/7.5KW; 1NO+1NC | Number of Poles | 3P |
| In(A) | 16 | Specification | 3LD20【16A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2054-1TP53 |
Specifications may be subject to change without notice
