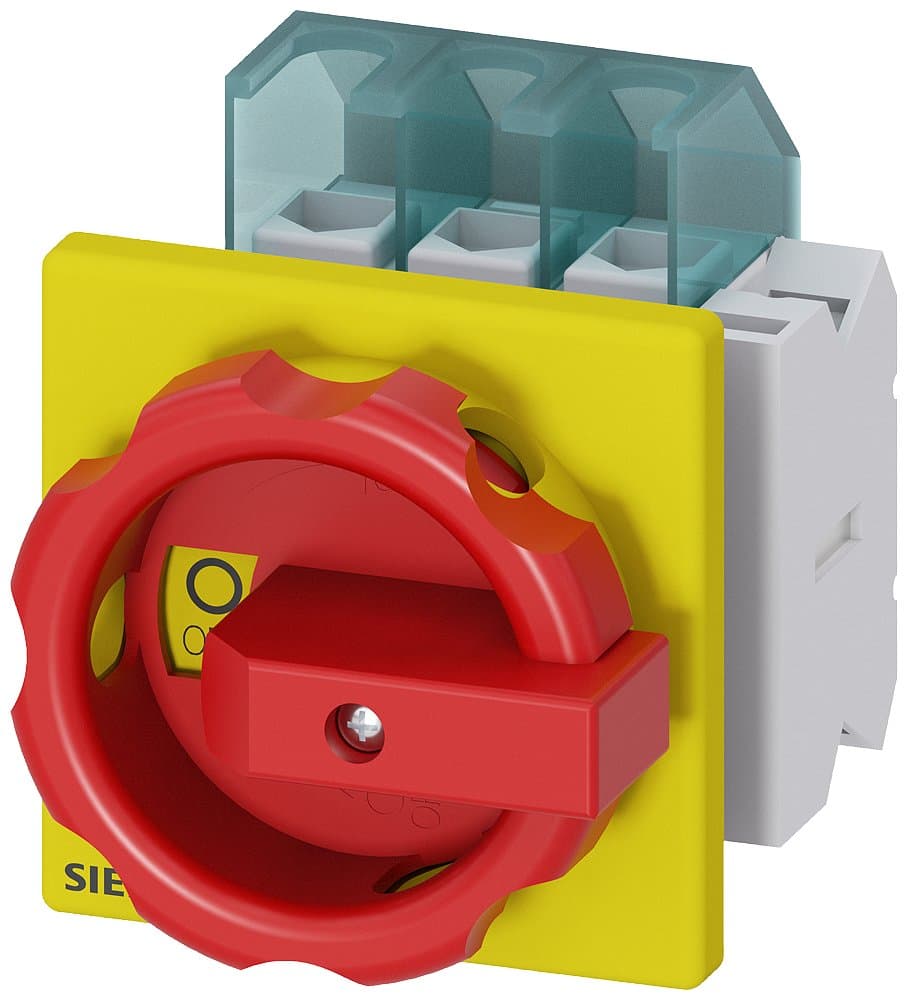

3LD2103-1TP53
Product ID:148336
Updated: 2026/4/5
Key Features
- 1Execute immediate emergency shutdowns with reliable safety switching. 2、Utilize a robust 3-pole configuration for diverse AC applications. 3、Handle high loads up to 9.5 kW at 400V AC efficiently. 4、Simplify installation with the convenient front-mounted handle design. 5、Ensure secure circuit control with 1 NC and 1 NO contacts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, red/yellow handle, flush mounting, four-hole fixation on cabinet door, AC-23A/9.5KW, 1NO+1NC | Installation Type | Flush mounting on cabinet door with four-hole fixation |
| Other | AC-23A/9.5KW, 1NO+1NC | Poles | 3P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2103-1TP53 |
Specifications may be subject to change without notice
