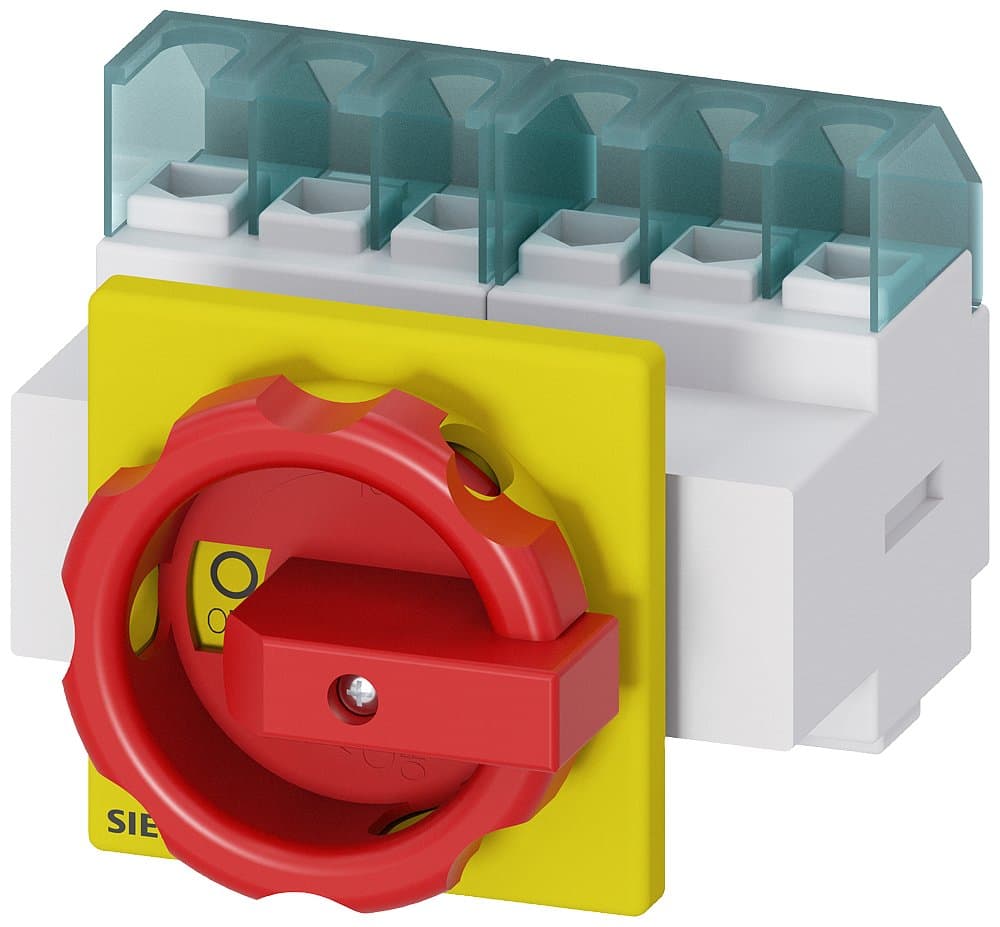

3LD2103-3VK53
Product ID:171028
Updated: 2026/4/5
Key Features
- 1Execute emergency switching-off reliably with a quick rotary mechanism. 2、Handle up to 25A rated current for robust industrial performance. 3、Mount conveniently on the front using a 4-hole system. 4、Operate smoothly via an intuitive short rotary knob. 5、Ensure durability with IP65 protection against dust and water.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 6P, with rotary operating mechanism, red/yellow handle, flush-mounted, four-hole installation on cabinet door, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Flush-mounted cabinet door with four-hole installation |
| Other | AC-3/7.5KW; AC-23A/9.5KW | Number of Poles | 6P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2103-3VK53 |
Specifications may be subject to change without notice
