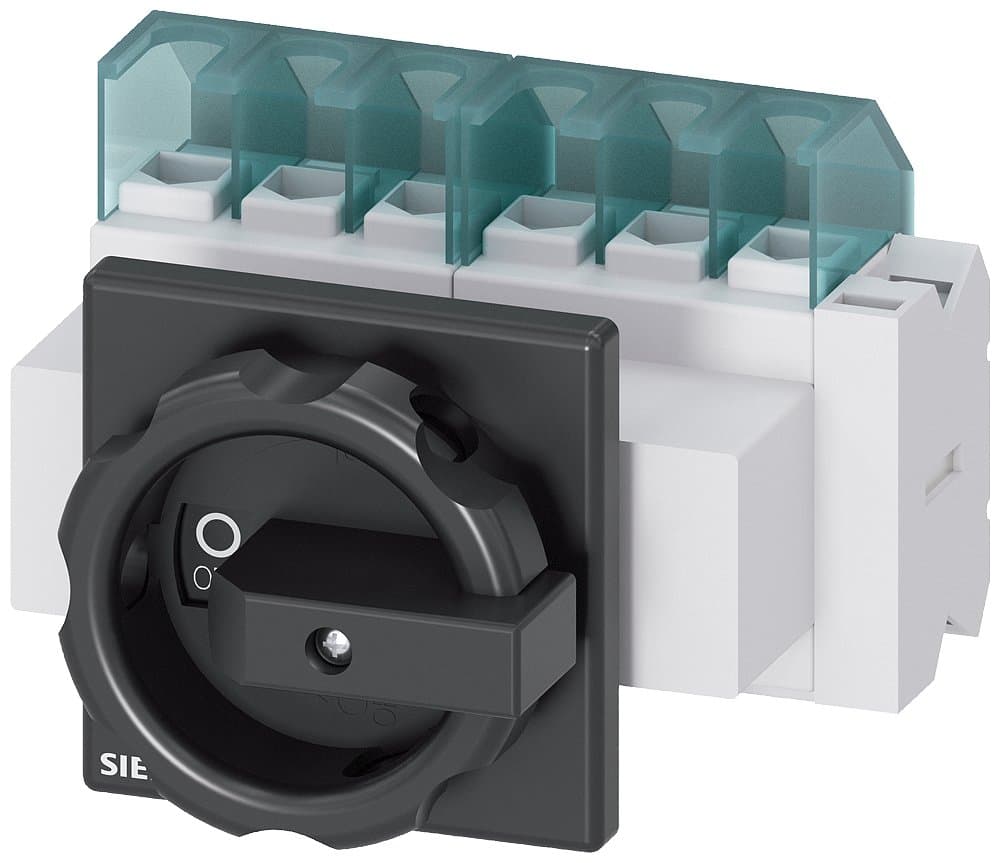

3LD2103-4VP51
Product ID:203810
Updated: 2026/7/3
Key Features
- 1Control high-power circuits reliably with a 25 A Iu rating.
- 2Ensure safe isolation using the 6-pole configuration.
- 3Access and operate easily with the front-mounted design.
- 4Achieve smooth switching via the rotary operating mechanism.
- 5Power equipment up to 9.5 kW at 400V AC-23A.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 6P, with rotary operating mechanism, black handle, flush-mounted, four-hole installation on cabinet door, AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole installation |
| Other: | AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Number of Poles: | 6P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2103-4VP51 |
Specifications may be subject to change without notice
