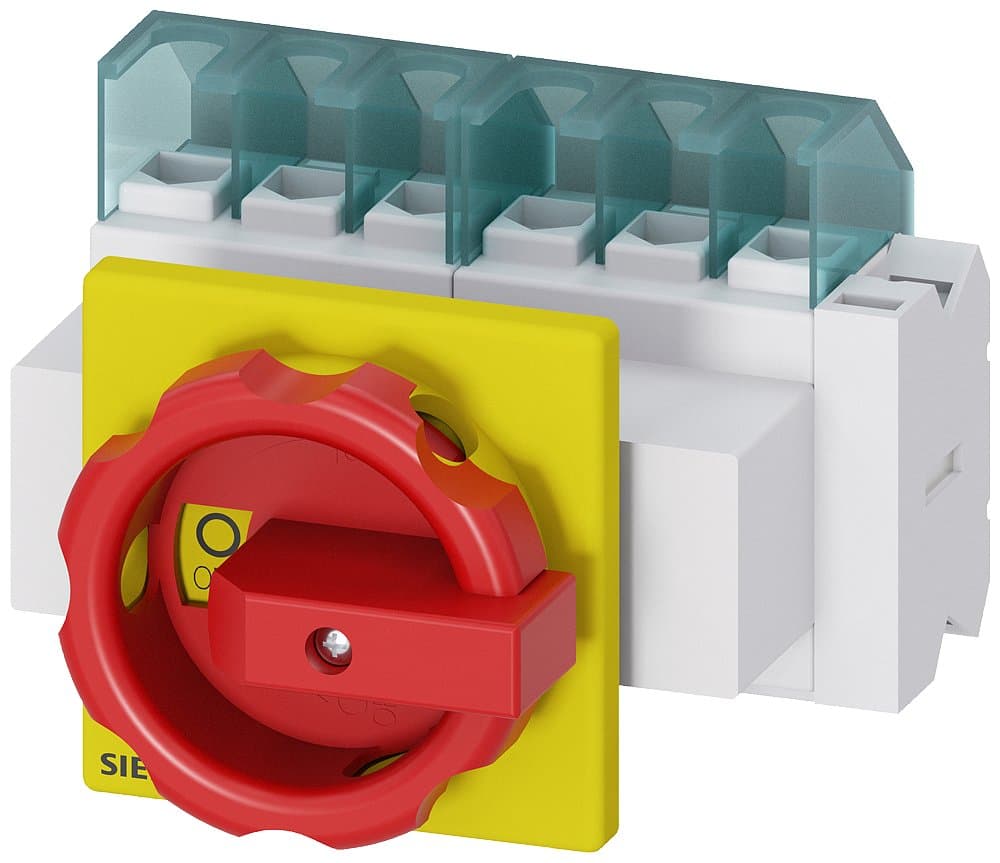

3LD2103-4VP53
Product ID:219300
Updated: 2026/6/22
Key Features
- 1Execute emergency power cutoff swiftly with a dedicated stop function.
- 2Handle high-current loads reliably with a 25A rated capacity.
- 3Support demanding 9.5 kW applications at 400V AC-23A.
- 4Simplify installation and access via a front-mounted design.
- 5Ensure secure operation with a 4-hole handle fixation mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 6P, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Mounting Type | Flush mounted cabinet door with four-hole installation |
| Other | AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Poles | 6P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2103-4VP53 |
Specifications may be subject to change without notice
