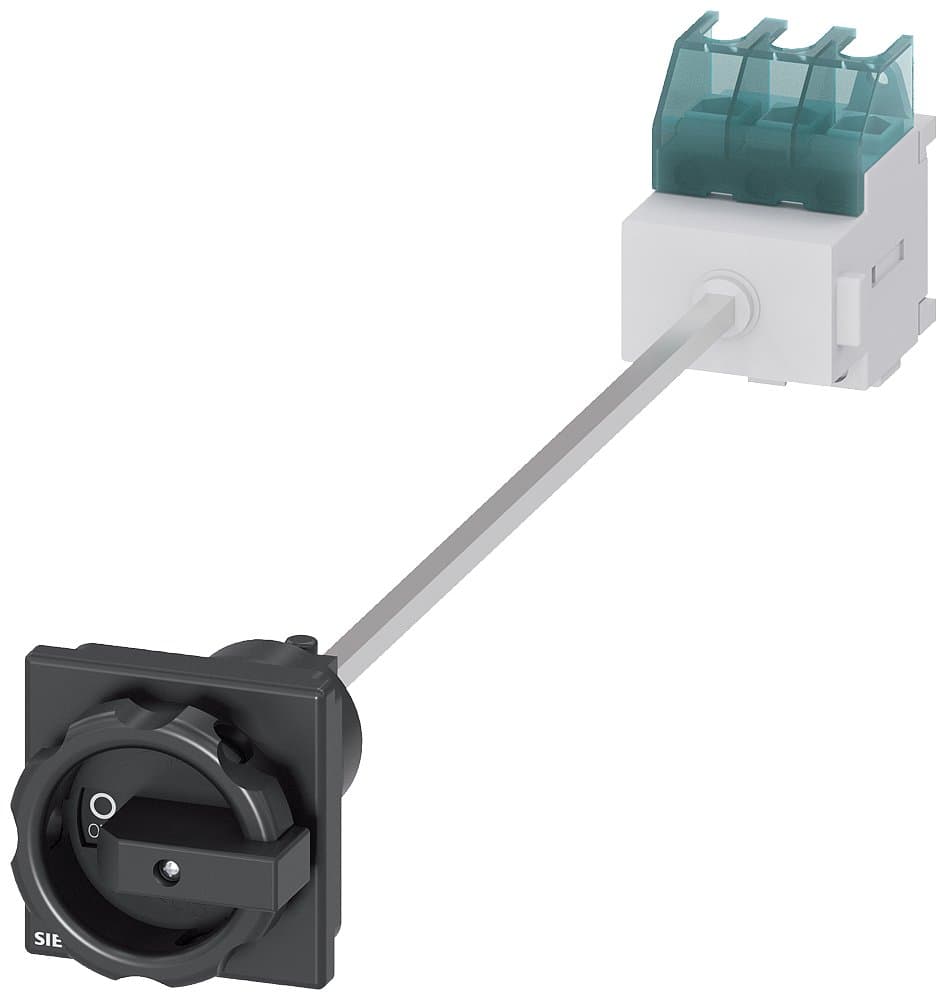

3LD2113-0TK51
Product ID:177477
Updated: 2026/4/5
Key Features
- 1Handle high-power loads up to 9.5 kW at 400 V AC. 2、Maximize panel space with a compact, floor-mounted design and door coupling. 3、Ensure durability with a robust construction and IP65 rating from the front. 4、Operate smoothly using the reliable rotary drive mechanism. 5、Meet environmental standards with full RoHS and WEEE directive compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 25A, 3P, Rotary Operation Mechanism with Door Coupling, Black Handle, Base-Mounted Installation, Cabinet Door with Four-Hole Fixation, AC-23A/9.5KW | Installation Type: | Base-Mounted Installation, Cabinet Door with Four-Hole Fixation |
| Other: | AC-23A/9.5KW | Number of Poles: | 3P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | Rotary Operation Mechanism with Door Coupling, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2113-0TK51 |
Specifications may be subject to change without notice
