3LD2113-0TK53
Product ID:222789
Updated: 2026/6/17
Key Features
- 1Ensure reliable 25A switching operations for critical safety circuits.
- 2Execute emergency shutdowns with 9.5 kW operating power at 400 V.
- 3Simplify installation via floor mounting with integrated door coupling.
- 4Operate effortlessly using the user-friendly rotary mechanism.
- 5Meet environmental regulations with RoHS and WEEE compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

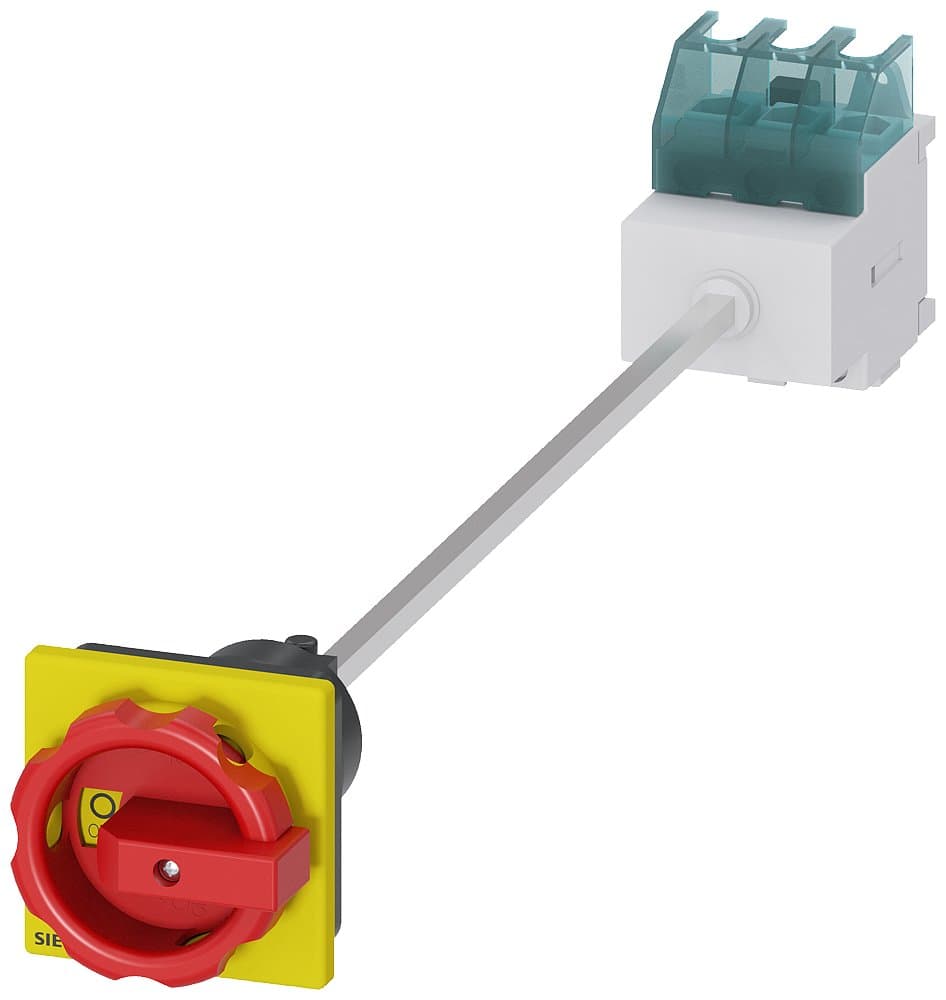

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, four-hole mounting on cabinet door, AC-23A/9.5KW | Installation Type | Base-mounted installation, four-hole mounting on cabinet door |
| Other | AC-23A/9.5KW | Poles | 3P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2113-0TK53 |
Specifications may be subject to change without notice
