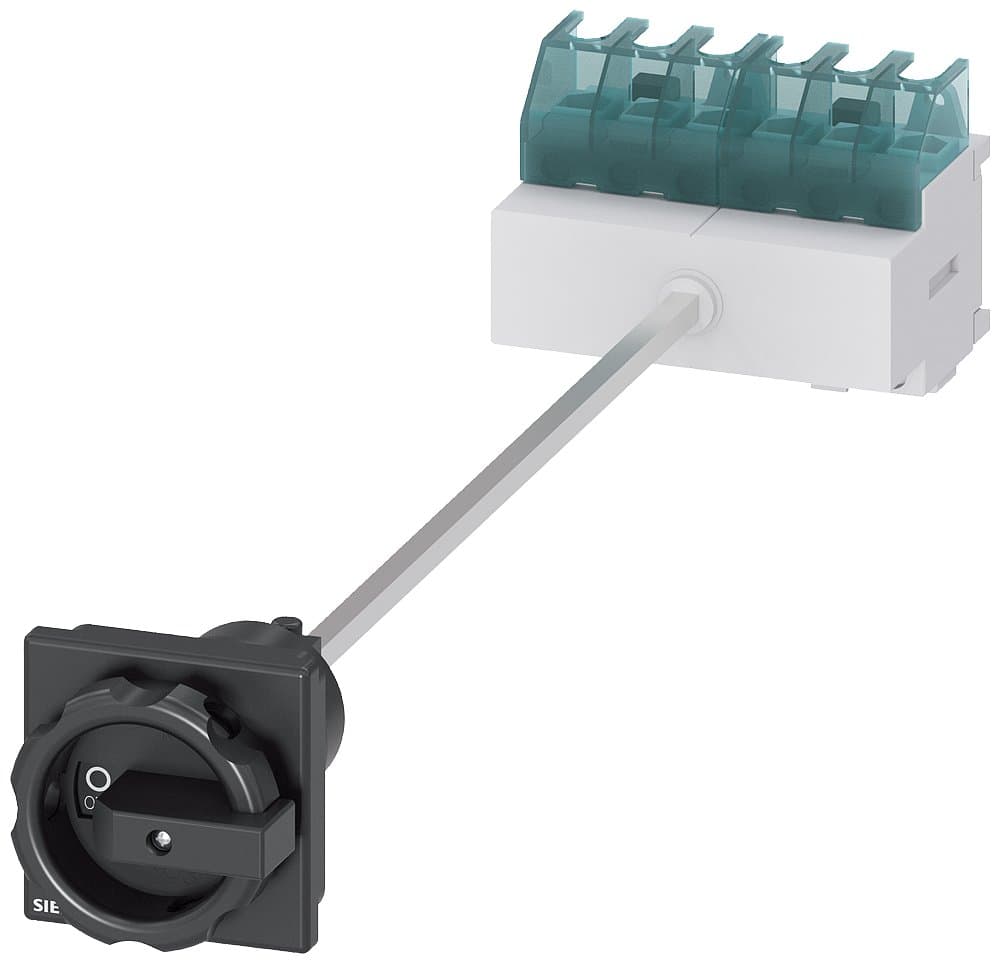

3LD2113-3VK51
Product ID:177898
Updated: 2026/7/3
Key Features
- 1Control power comprehensively with a 6-pole main switch.
- 2Handle loads reliably with a 25A Iu rating.
- 3Install easily via floor mounting with door coupling.
- 4Save space with a compact and efficient design.
- 5Ensure safety with IEC 947-1 and CE compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 6P, rotary operating mechanism with door coupling, black handle, base-mounted installation, four-hole mounting on cabinet door, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Base-mounted installation, four-hole mounting on cabinet door |
| Other | AC-3/7.5KW; AC-23A/9.5KW | Number of Poles | 6P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | Rotary operating mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2113-3VK51 |
Specifications may be subject to change without notice
