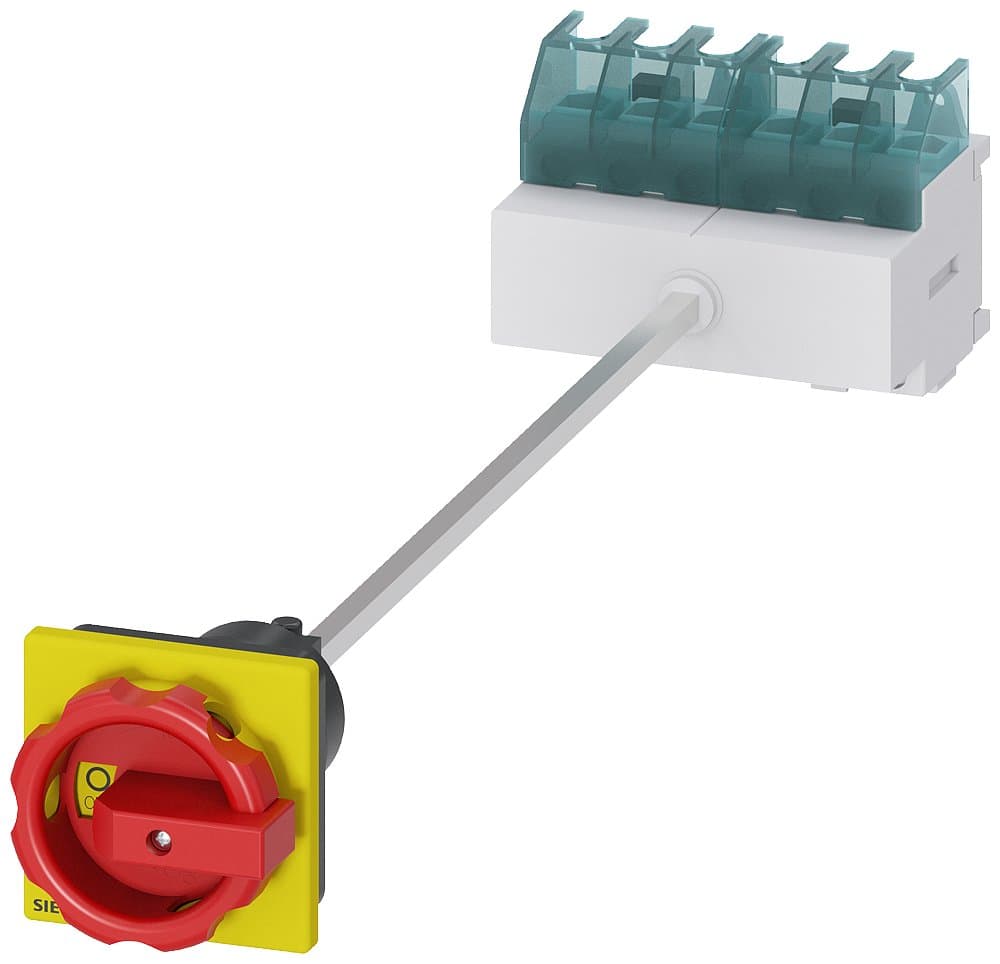

3LD2113-3VK53
Product ID:121490
Updated: 2026/4/5
Key Features
- 1Quickly disconnect power in emergency situations. 2、Handle 25 A with a 50 kA short circuit rating. 3、Feature an IP65-rated enclosure for robust protection. 4、Operate smoothly with an easy-to-use rotary handle. 5、Mount conveniently on the floor with a secure door.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 6P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
| Other | AC-3/7.5KW; AC-23A/9.5KW | Poles | 6P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2113-3VK53 |
Specifications may be subject to change without notice
