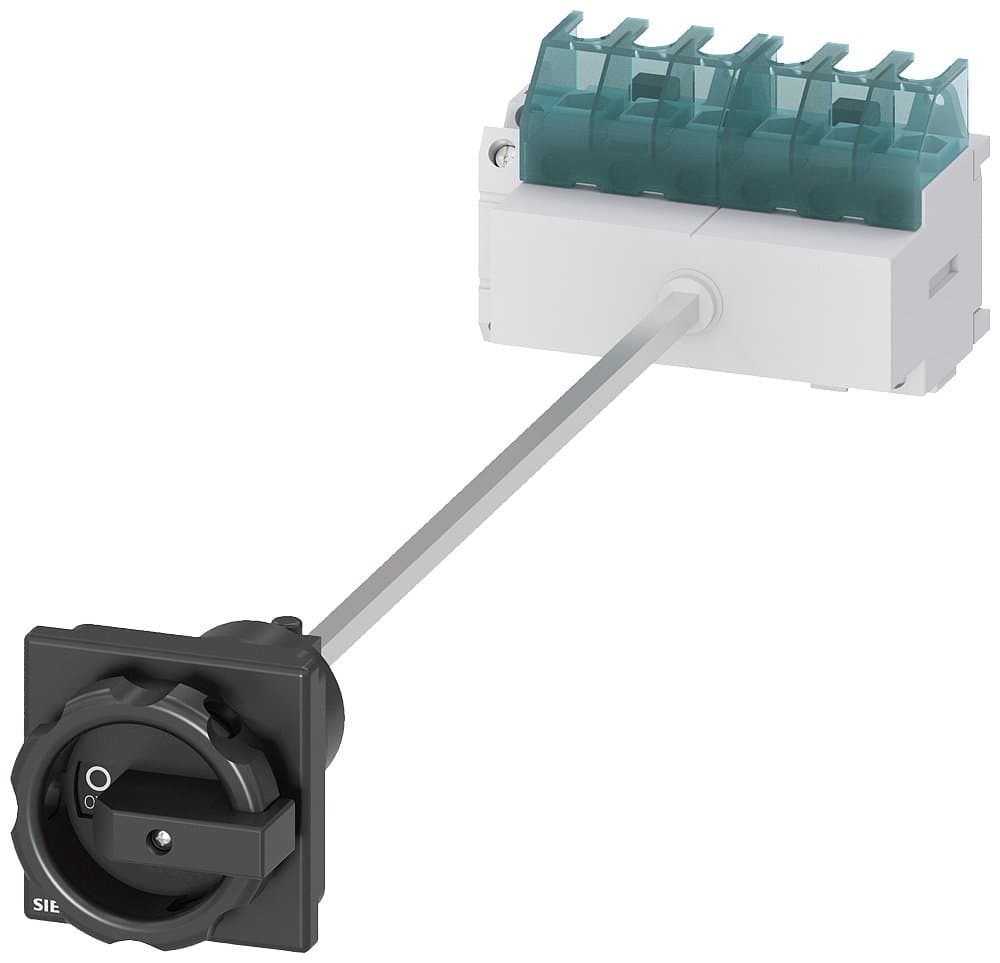

3LD2113-4VP51
Product ID:198450
Updated: 2026/4/4
Key Features
- 1Ensure reliable 25A power control in demanding industrial settings. 2、Maximize space with a compact floor-mount and door-coupling design. 3、Enhance safety using the 6-pole main switch configuration. 4、Deliver 9.5 kW operational power at 400V AC-23 for robust performance. 5、Adapt to various installations including floor and door coupling setups.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 25A, 6P, rotary operating mechanism with door coupling, black handle, base-mounted installation, cabinet door four-hole mounting, AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Installation Type: | Base-mounted installation, cabinet door four-hole mounting |
| Other: | AC-3/7.5KW; AC-23A/9.5KW, 1NO+1NC | Number of Poles: | 6P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | Rotary operating mechanism with door coupling, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2113-4VP51 |
Specifications may be subject to change without notice
