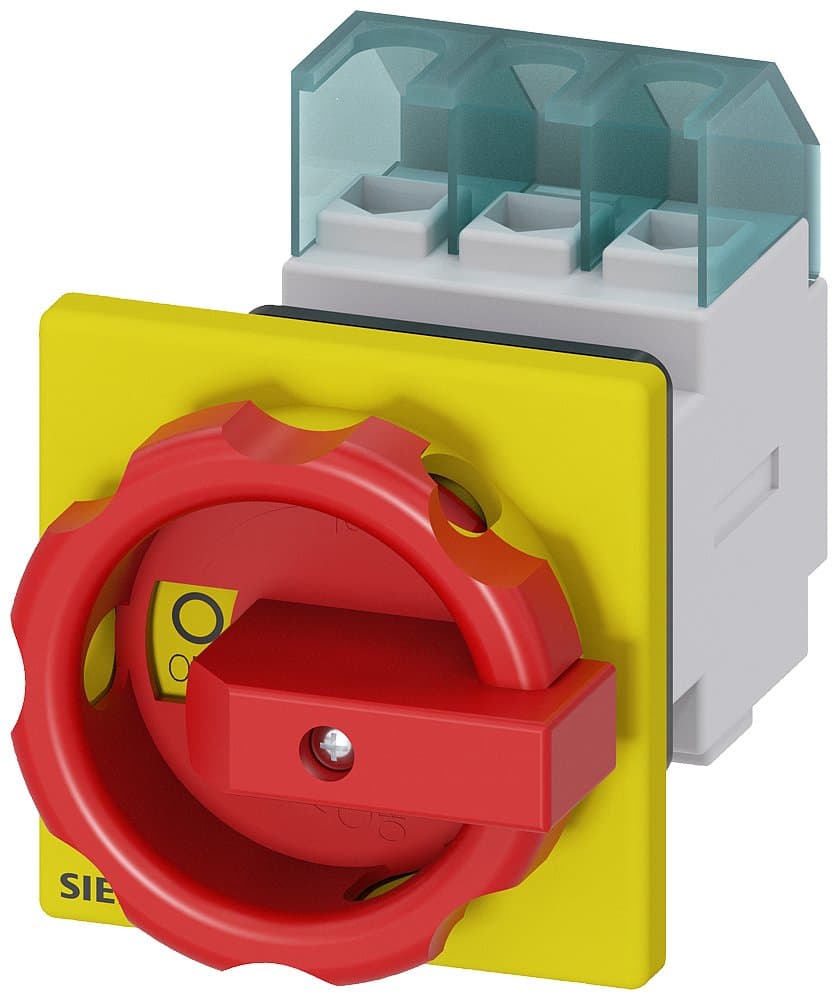

3LD2154-0TK53
Product ID:216503
Updated: 2026/6/25
Key Features
- 1Handle high-power applications up to 9.5 kW at 23 A, 400 V AC.
- 2Execute reliable emergency stop functions with a 3-pole safety design.
- 3Achieve IP65-rated protection against dust and water ingress.
- 4Operate reliably across a wide temperature range from -25°C to 55°C.
- 5Control smoothly with a durable rotary actuator mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, red/yellow handle, flush mounting, cabinet door center hole installation, AC-3/7.5KW; AC-23A/9.5KW | Installation Type | Flush mounting in cabinet door center hole |
| Other | AC-3/7.5KW; AC-23A/9.5KW | Poles | 3P |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2154-0TK53 |
Specifications may be subject to change without notice
