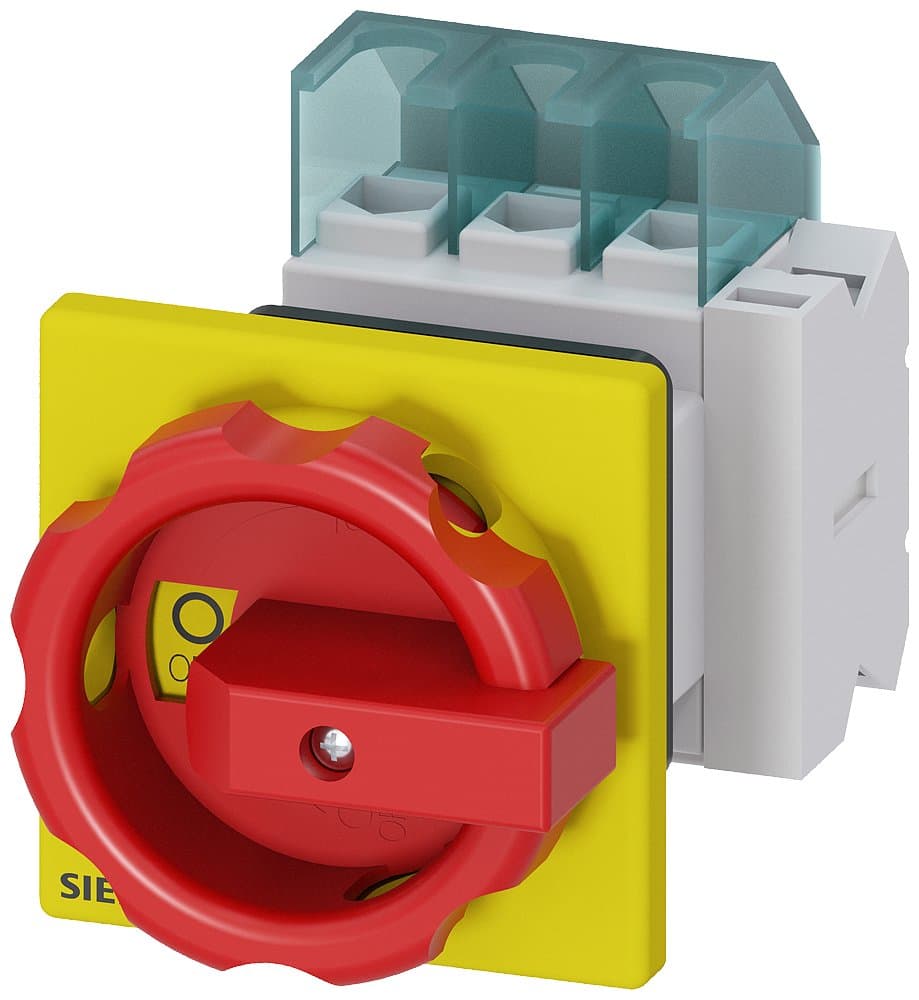

3LD2154-1TP53
Product ID:193100
Updated: 2026/7/3
Key Features
- 1Execute reliable emergency shutdowns with a robust 3-pole configuration.
- 2Handle high currents up to 25A Iu and 9.5kW operating power.
- 3Access conveniently with a front-mounted, easy-to-operate design.
- 4Maintain stable performance across -25°C to 55°C.
- 5Rely on durable construction from the Siemens SENTRON series.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P, with rotary operating mechanism, red/yellow handle, flush mounting, cabinet door center hole installation, AC-23A/9.5KW, 1NO+1NC | Installation Type: | Flush mounting in cabinet door center hole |
| Other: | AC-23A/9.5KW, 1NO+1NC | Poles: | 3P |
| In(A): | 25 | Specification: | 3LD21【25A】 |
| Switch Type: | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2154-1TP53 |
Specifications may be subject to change without notice
