Key Features
- 1Ensure reliable power isolation with a 25A rating for stable operations. 2、Protect against dust and water ingress with a front-mounted IP65 enclosure. 3、Handle up to 9.5 kW of operating power at 400V AC-23. 4、Simplify panel installation using the compact 3+N pole configuration. 5、Rely on durable SENTRON series construction for demanding environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |

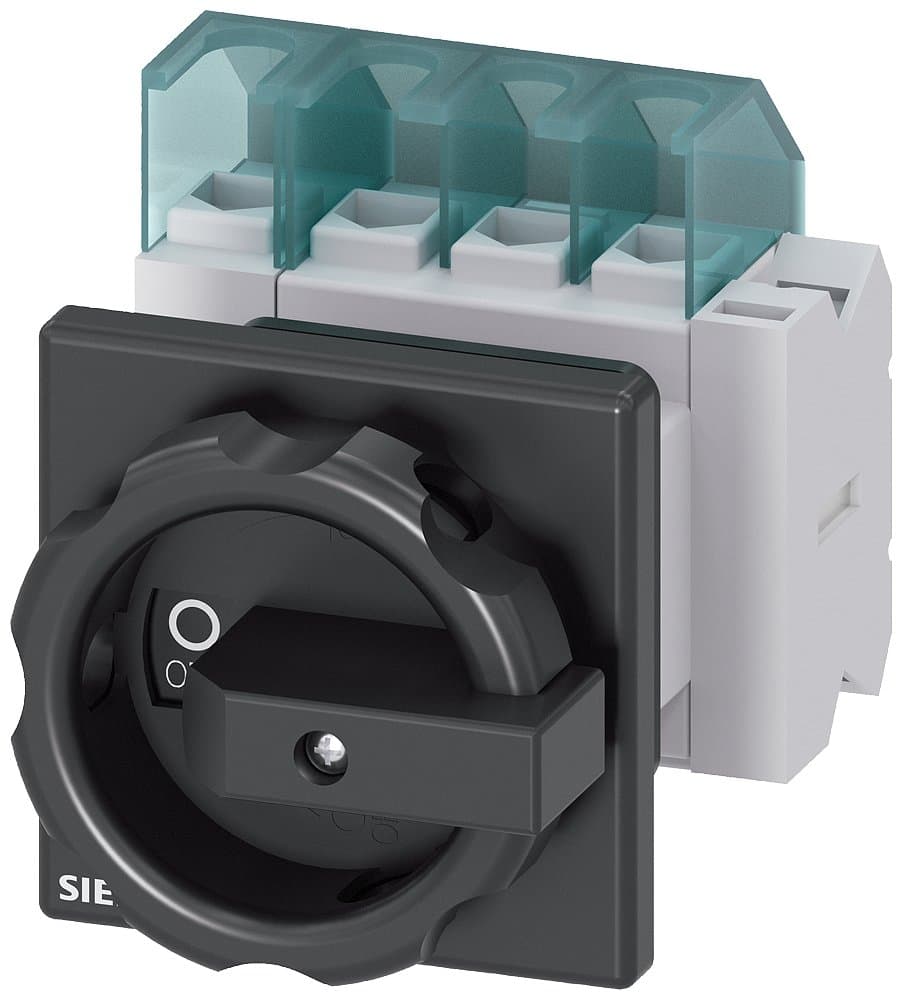

| Description | Isolator switch, main control and emergency stop switch, 3LD2, 25A, 3P+N, with rotary operating mechanism, black handle, mounting in the center hole of the cabinet door, AC-23A/9.5KW, 1NO+1NC | Installation Type | Mounting in the center hole of the cabinet door |
| Other | AC-23A/9.5KW, 1NO+1NC | Number of Poles | 3P+N |
| In(A) | 25 | Specification | 3LD21【25A】 |
| Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2154-2EP51 |
Specifications may be subject to change without notice
