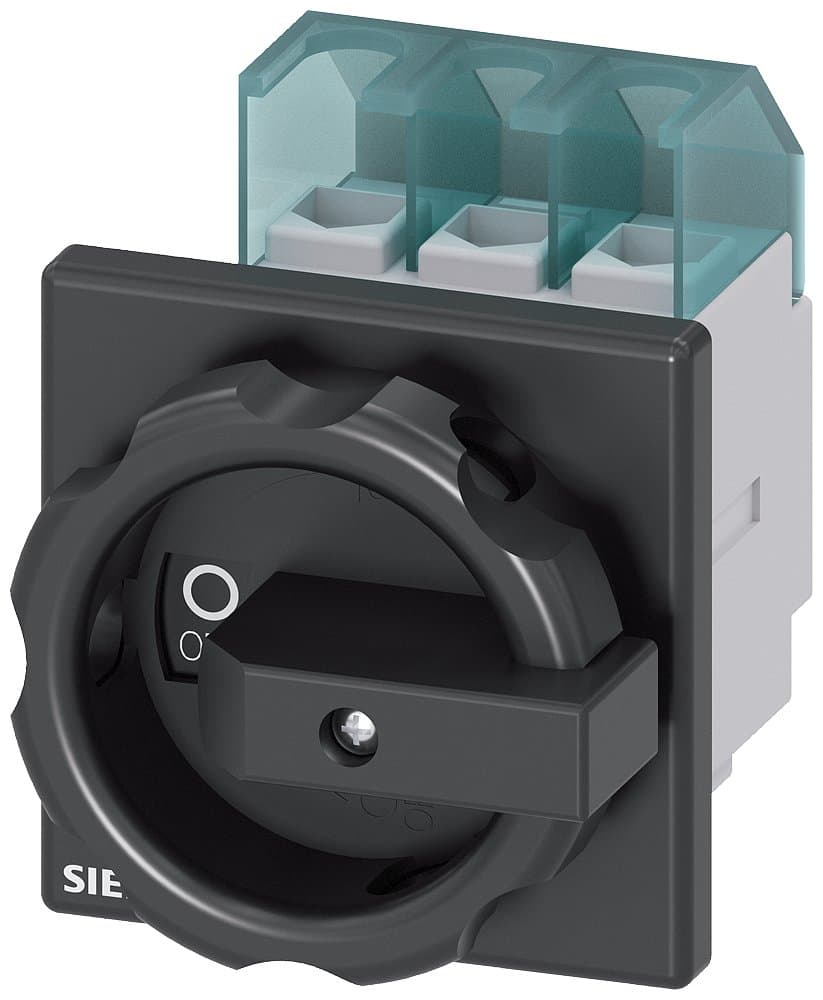

3LD2203-0TK51
Product ID:152725
Updated: 2026/4/5
Key Features
- 1Ensure reliable 32A current rating with 3-pole design. 2、Operate easily via front-mounted rotary mechanism. 3、Deliver 11.5 kW operating power at 400V AC-23. 4、Withstand temperatures from -25°C to 55°C. 5、Save panel space with compact 67x67 mm face.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 32A, 3P, with rotary operating mechanism, black handle, flush mounted, four-hole mounting on cabinet door, AC-3/9.5KW; AC-23A/11.5KW | Installation Type | Flush mounted cabinet door with four-hole mounting |
| Other | AC-3/9.5KW; AC-23A/11.5KW | Number of Poles | 3P |
| In(A) | 32 | Specification | 3LD22【32A】 |
| Switch Type | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2203-0TK51 |
Specifications may be subject to change without notice
