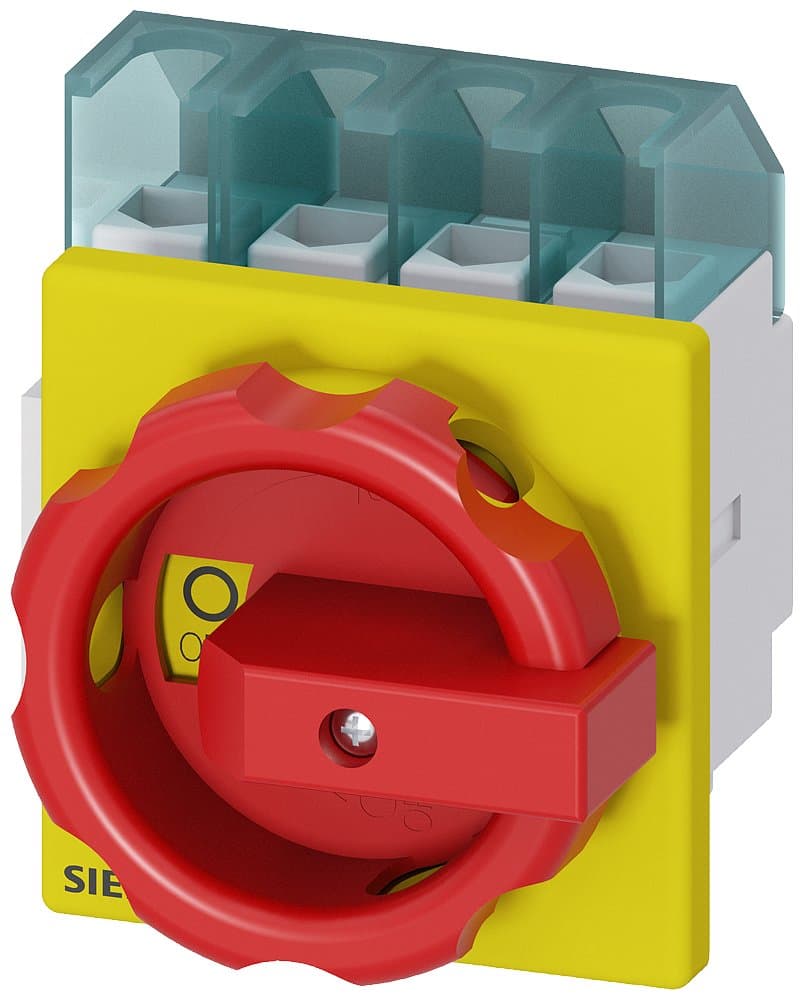

3LD2203-1TL53
Product ID:114146
Updated: 2026/7/2
Key Features
- 1Ensure safe operation with a 32A rating and 3+N pole configuration.
- 2Maximize panel space using the pre-mounted front design for easy installation.
- 3Guarantee reliability across a wide temperature range from -25°C to 55°C.
- 4Simplify setup with the user-friendly rotary actuator and fixed handle.
- 5Achieve long-lasting performance with durable industrial-grade construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P+N, with rotary operating mechanism, red/yellow handle, flush mounting, four-hole installation on cabinet door, AC-3/9.5KW; AC-23A/11.5KW | Installation Type | Flush mounting on cabinet door with four-hole installation |
| Other | AC-3/9.5KW; AC-23A/11.5KW | Number of Poles | 3P+N |
| In(A) | 32 | Specification | 3LD22【32A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2203-1TL53 |
Specifications may be subject to change without notice
