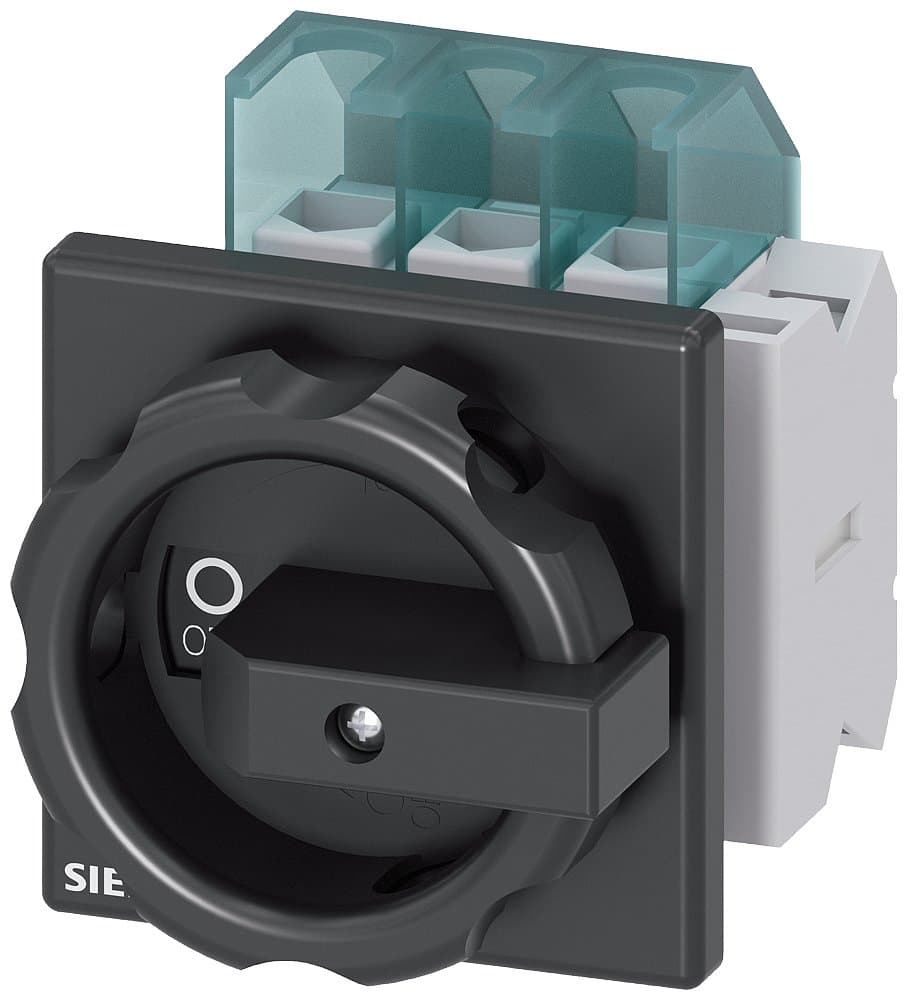

3LD2203-1TP51
Product ID:104388
Updated: 2026/7/2
Key Features
- 1Ensure reliable 32A current handling for stable power distribution.
- 2Support 690VAC systems with broad voltage compatibility.
- 3Simplify installation using the front-mounted rotary handle design.
- 4Achieve efficient 3-pole isolation in industrial control panels.
- 5Reduce maintenance with the durable SENTRON series construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 32A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-23A/11.5KW, 1NO+1NC | Installation Type: | Flush-mounted cabinet door with four-hole mounting |
| Other: | AC-23A/11.5KW, 1NO+1NC | Number of Poles: | 3P |
| In(A): | 32 | Specification: | 3LD22【32A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2203-1TP51 |
Specifications may be subject to change without notice
Still deciding on 3LD2203-1TP51?
Our engineers can confirm stock, price, and lead time for this Siemens part.
Get a no-obligation quote in 1 minute.
