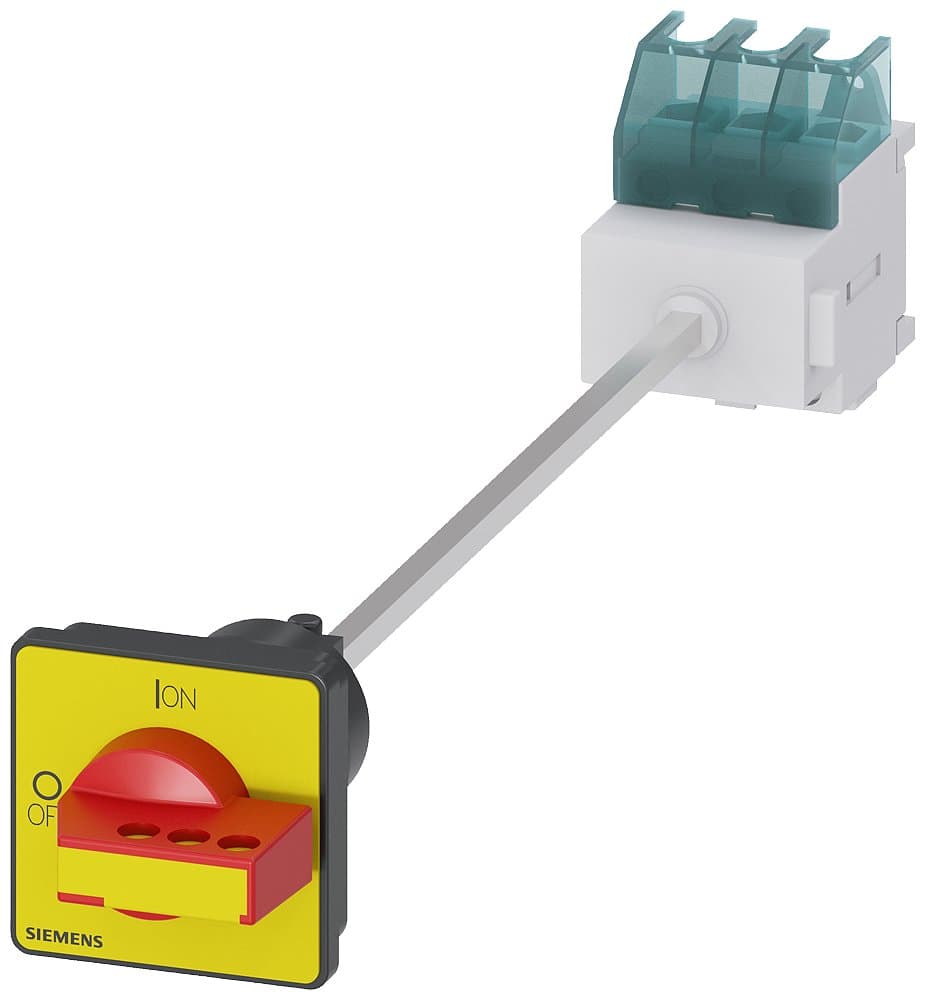

3LD2217-0TK13
Product ID:168976
Updated: 2026/4/5
Key Features
- 1Execute emergency stops instantly to cut power and ensure personnel safety. 2、Utilize a robust 3-pole configuration for reliable circuit isolation. 3、Handle loads up to 32 A current for consistent performance. 4、Manage operating power of 11.5 kW at 400 V AC efficiently. 5、Simplify installation with floor-mounting and door-coupling design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, with removable door-coupled rotary operation mechanism, red/yellow handle, base-mounted installation, cabinet door with four-hole mounting, AC-23A/11.5KW, UL508 certified | Installation Type | Base-mounted installation, cabinet door with four-hole mounting |
| Other | AC-23A/11.5KW, UL508 certified | Number of Poles | 3P |
| In(A) | 32 | Specification | 3LD22【32A】 |
| Switch Type | With removable door-coupled rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2217-0TK13 |
Specifications may be subject to change without notice
