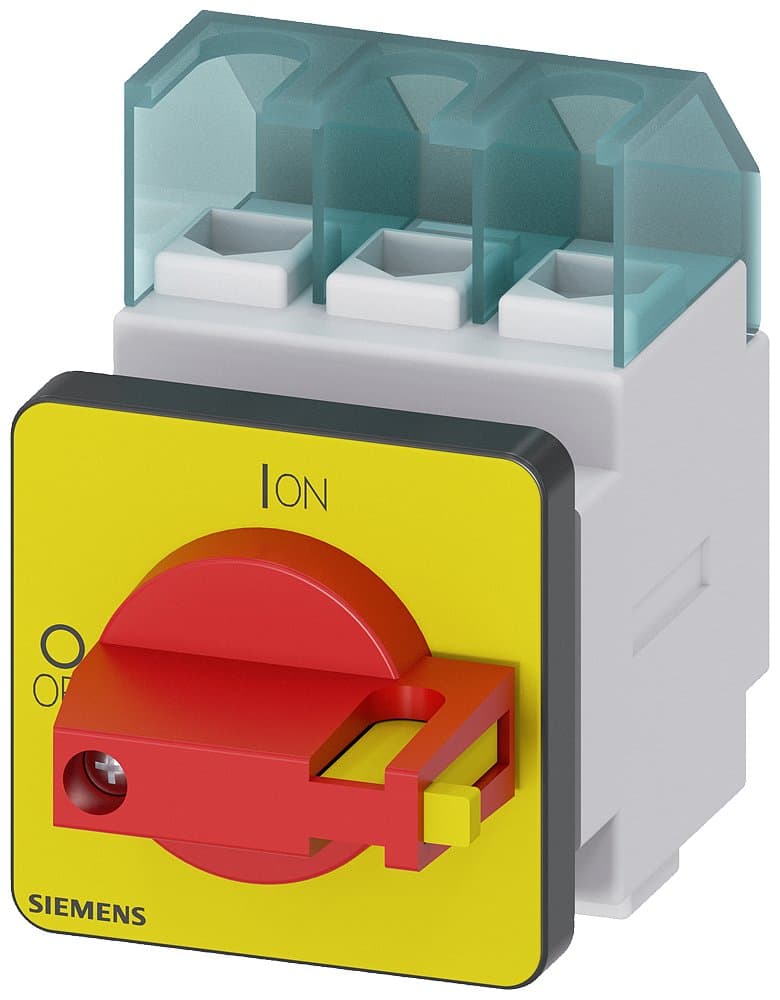

3LD2222-0TK13
Product ID:227303
Updated: 2026/4/3
Key Features
- 1Deliver high-performance switching at 690 VAC and 32 A. 2、Ensure protection in harsh environments with a durable IP65 enclosure. 3、Operate easily and safely with the user-friendly rotary knob actuator. 4、Provide reliable emergency switching-off for critical electrical applications. 5、Enable efficient power control with the robust 3-pole design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, with selector switch operation mechanism, red/yellow handle, flush mounting, cabinet door four-hole installation, AC-23A/11.5KW | Installation Type: | Flush Mounting Cabinet Door Four-Hole Installation |
| Others: | AC-23A/11.5KW | Poles: | 3P |
| In(A): | 32 | Specification: | 3LD22【32A】 |
| Switch Type: | With Selector Switch Operation Mechanism, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2222-0TK13 |
Specifications may be subject to change without notice
