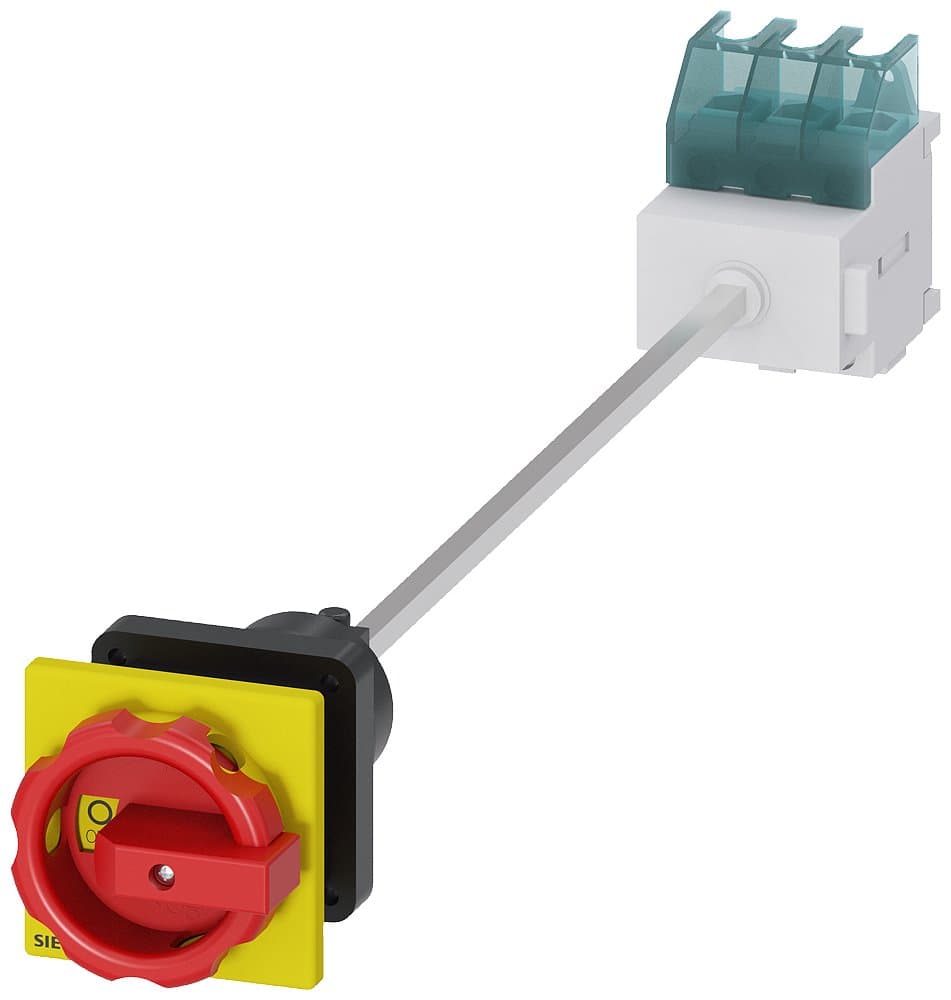

3LD2244-0TK53
Product ID:184802
Updated: 2026/8/12
Key Features
- 1Ensure safety compliance with EN 60204 machinery directive.
- 2Handle high-current loads up to 32 A reliably.
- 3Execute rapid emergency power disconnection instantly.
- 4Simplify installation via floor mounting with door coupling.
- 5Operate smoothly with a central rotary handle mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V) | 690 | Insulation Voltage(V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door, AC-23A/11.5KW | Installation Type | Base-mounted installation, center hole in cabinet door |
| Other | AC-23A/11.5KW | Poles | 3P |
| In(A) | 32 | Specification | 3LD22【32A】 |
| Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2244-0TK53 |
Specifications may be subject to change without notice
