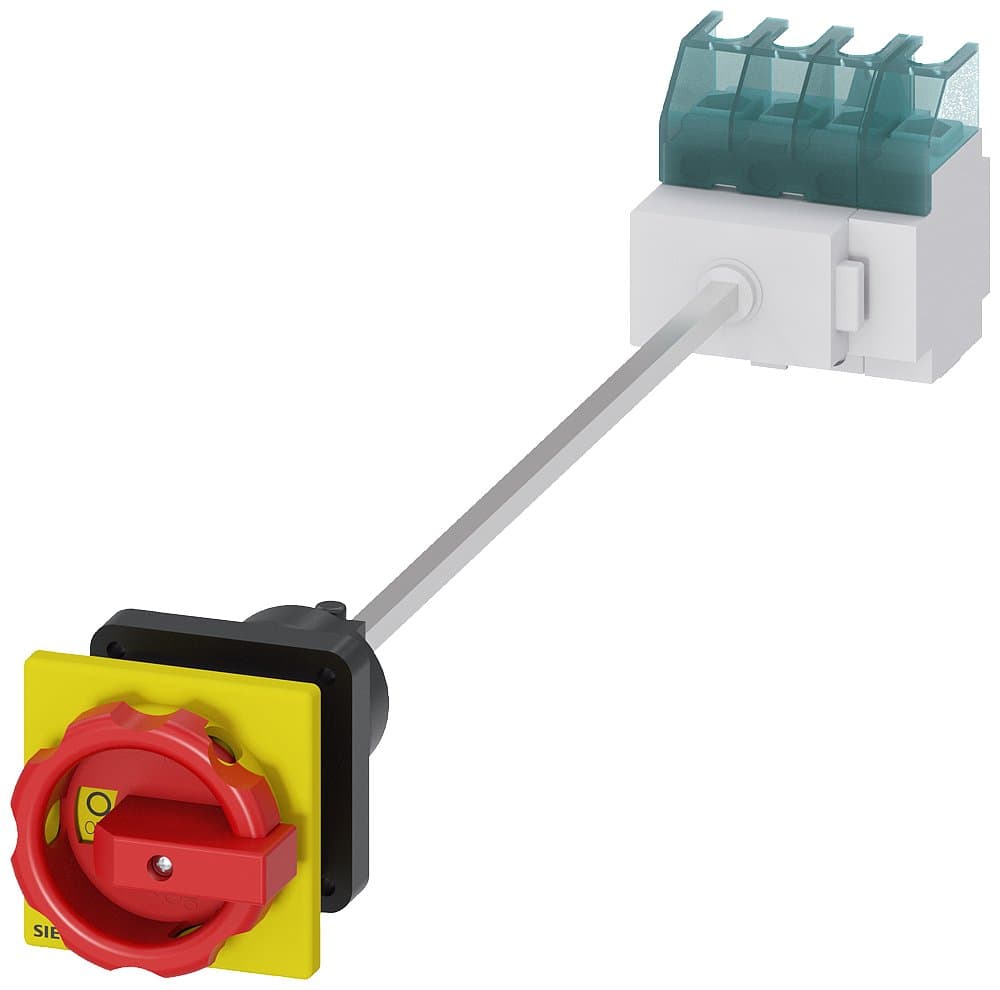

3LD2244-1TL53
Product ID:100084
Updated: 2026/4/3
Key Features
- 1Handle high currents up to 32A for demanding applications. 2、Achieve IP65 protection with durable, sealed handles. 3、Meet safety standards with CSA certification for Type 1, 4X, 12. 4、Save panel space using the compact, door-mountable design. 5、Use as a certified motor disconnect with load break rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V) | 690 | Insulation Voltage(V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P+N, rotary operating mechanism with door coupling, red/yellow handle, base-mounted installation, center hole in cabinet door, AC-23A/11.5KW | Installation Type | Base-mounted installation, center hole in cabinet door |
| Other | AC-23A/11.5KW | Poles | 3P+N |
| In(A) | 32 | Specification | 3LD22【32A】 |
| Switch Type | Rotary operating mechanism with door coupling, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2244-1TL53 |
Specifications may be subject to change without notice
