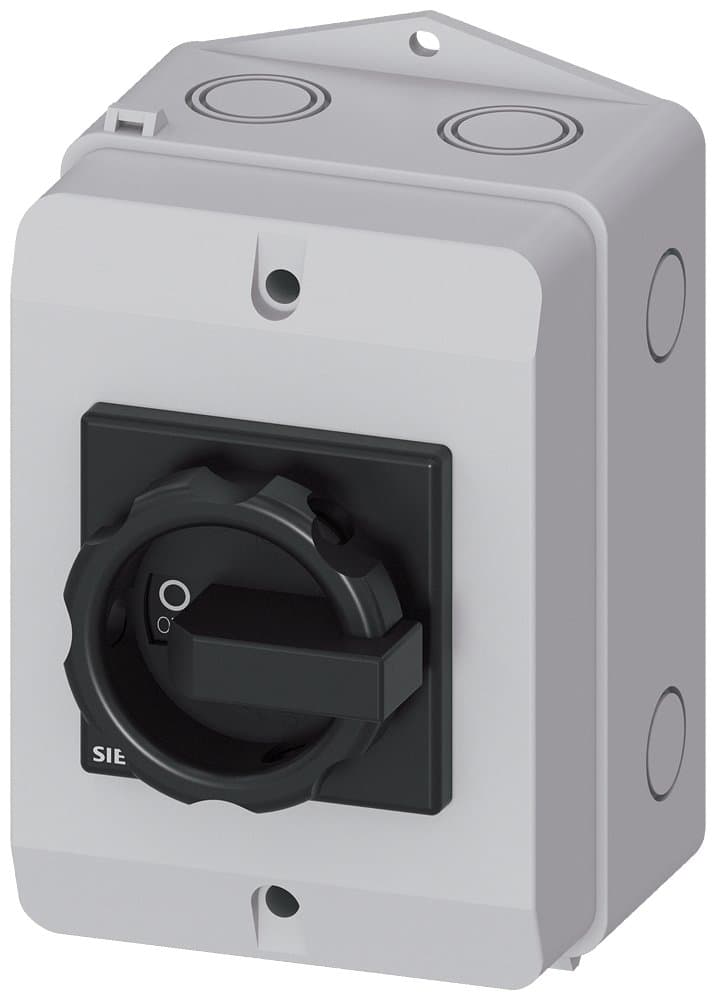

3LD2264-0TB51
Product ID:152988
Updated: 2026/7/3
Key Features
- 1Handle demanding 32A loads at up to 690 VAC for robust performance.
- 2Protect against dust and water ingress with a durable IP65-rated enclosure.
- 3Operate conveniently and safely using the reliable rotary actuator.
- 4Serve as a main switch, safety isolator, or maintenance disconnect for versatile applications.
- 5Meet global safety standards including UL, CE, CSA, and CCC for assured compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 32A, 3P, Metric Thread Sealed Connection, Black Handle, Plastic Housing Installation, AC-23A/11.5KW | Installation Type | Plastic Housing Installation |
| Terminal Type | PE+N | Other | AC-23A/11.5KW |
| Number of Poles | 3P | In(A) | 32 |
| Specification | 3LD22【32A】 | Switch Type | Metric Thread Sealed Connection, Black Handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2264-0TB51 |
Specifications may be subject to change without notice
