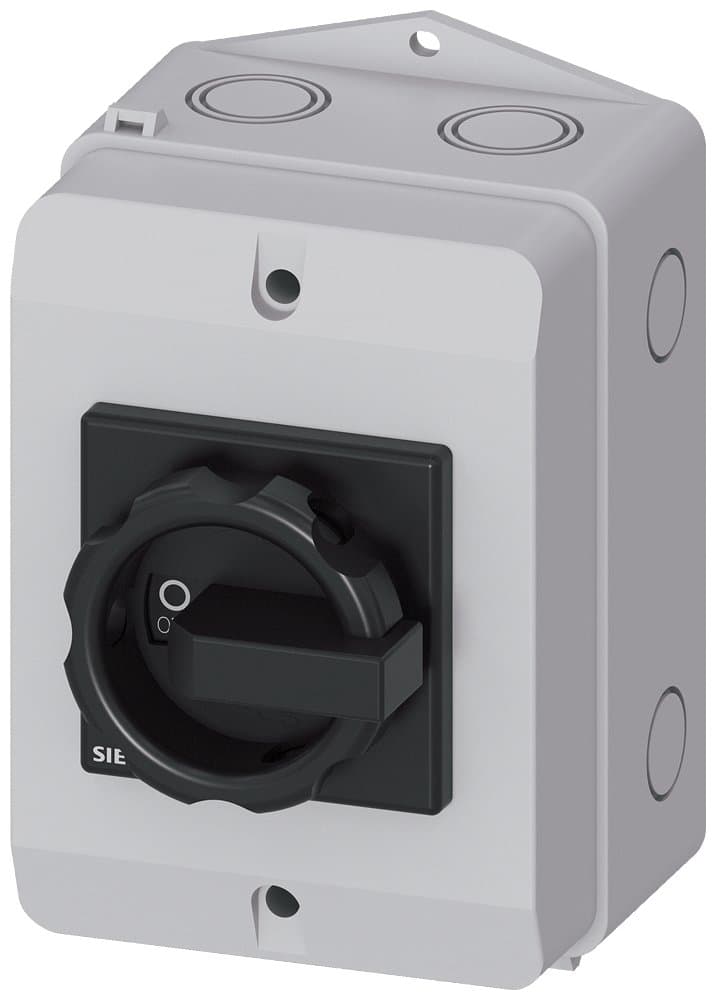

3LD2264-1GP51
Product ID:162521
Updated: 2026/7/3
Key Features
- 1Handle high-power loads up to 11.5 kW (23A at 400V AC).
- 2Ensure operator safety with a reliable 3-pole isolation function.
- 3Simplify installation using secure metric screw connections.
- 4Operate effortlessly with the short rotary knob mechanism.
- 5Protect components within a durable molded plastic housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 32A, 3P, Metric Thread Sealed Connection, Black Handle, Plastic Housing Installation, AC-23A/11.5KW, 1NO+1NC | Mounting Type | Plastic Housing Installation |
| Terminal Type | N | Other | AC-23A/11.5KW, 1NO+1NC |
| Number of Poles | 3P | In(A) | 32 |
| Specification | 3LD22【32A】 | Switch Type | Metric Thread Sealed Connection, Black Handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2264-1GP51 |
Specifications may be subject to change without notice
