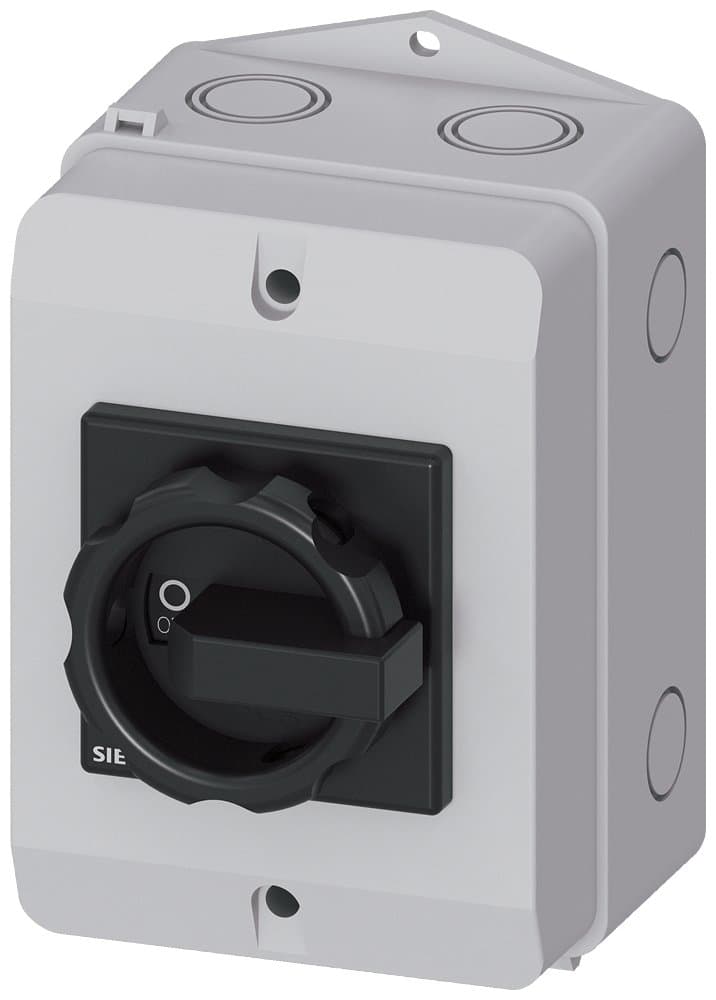

3LD2264-1TC51
Product ID:136470
Updated: 2026/4/6
Key Features
- 1Handle high power up to 11.5 kW at 400 V AC. 2、Ensure durability with molded-plastic encapsulation for metric threads. 3、Apply versatilely across various stable industrial settings. 4、Rely on stable performance from -25°C to 55°C. 5、Install easily with compact 100x140 mm face dimensions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 32A, 3P+N, metric threaded sealed connector, black handle, plastic housing installation, AC-23A/11.5KW | Installation Type | Plastic Housing Installation |
| Terminal Type | PE | Other | AC-23A/11.5KW |
| Number of Poles | 3P+N | In(A) | 32 |
| Specification | 3LD22【32A】 | Switch Type | Metric threaded sealed connector, black handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2264-1TC51 |
Specifications may be subject to change without notice
