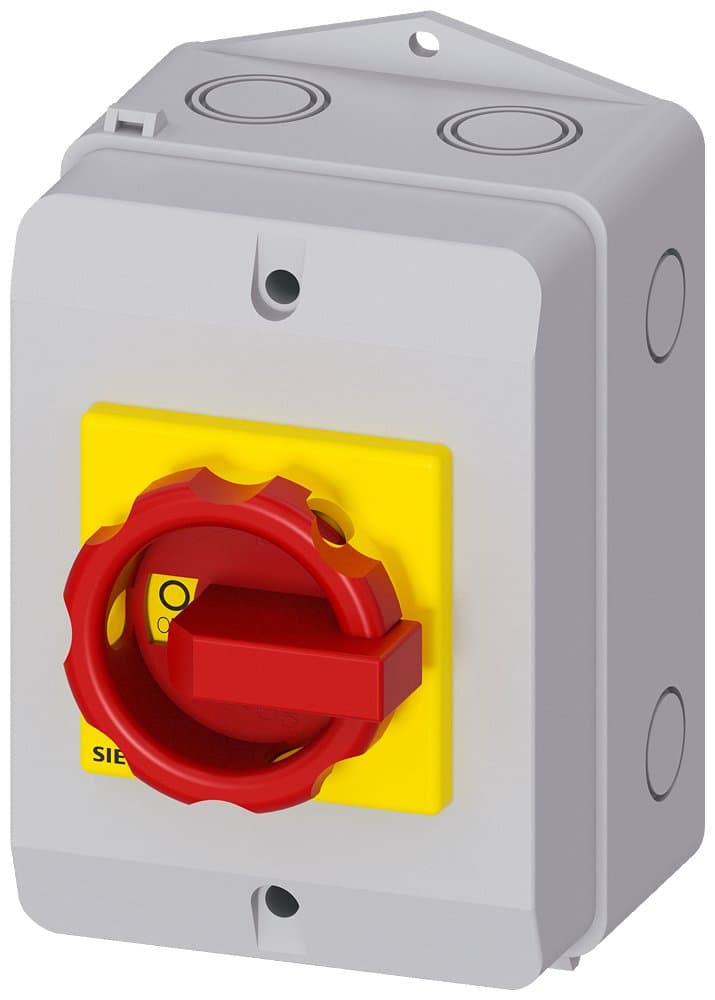

3LD2264-1TC53
Product ID:101871
Updated: 2026/7/2
Key Features
- 1Quickly disconnect power in emergencies with the 32A emergency stop function.
- 2Operate reliably in high-voltage environments up to 400V AC-23A.
- 3Ensure durability with a molded-plastic encapsulated housing.
- 4Gain comprehensive safety control using the 4-pole switch design.
- 5Install easily thanks to the compact design and rotary knob.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator Switch, Main Control and Emergency Stop Switch, 3LD2, 32A, 3P+N, Metric Thread Sealed Connector, Red/Yellow Handle, Plastic Housing Mounting, AC-23A/11.5KW | Mounting Type | Plastic Housing Mounting |
| Terminal Type | PE | Other | AC-23A/11.5KW |
| Poles | 3P+N | In(A) | 32 |
| Specification | 3LD22【32A】 | Switch Type | Metric Thread Sealed Connector, Red/Yellow Handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2264-1TC53 |
Specifications may be subject to change without notice
