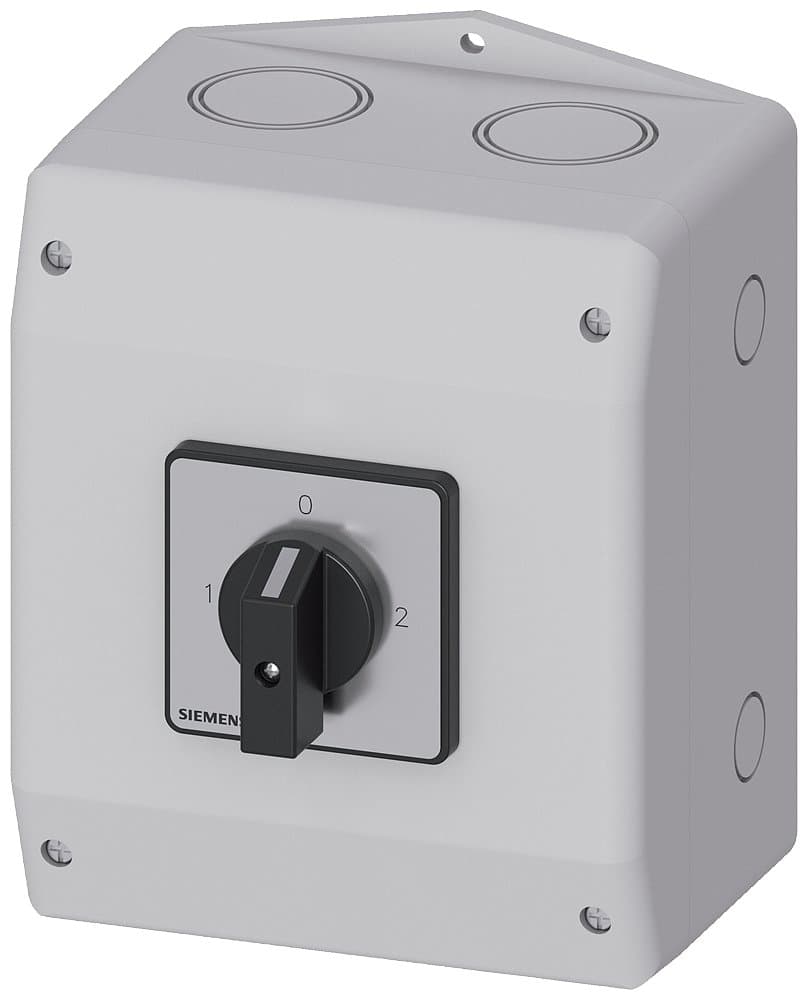

3LD2265-7UB01
Product ID:144606
Updated: 2026/9/5
Key Features
- 1Control up to 32A uninterrupted current reliably.
- 2Achieve 11.5 kW operating power at 400V AC-23.
- 3Ensure operator safety with EN 50274 touch protection.
- 4Protect against dust and water with a robust IP65 enclosure.
- 5Simplify installation with a knob-operated mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, Main control and emergency stop switch, 3LD2, 32A, 3P, Metric thread sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle, Plastic enclosure mounting, AC-3/9.5KW; AC-23A/11.5KW | Mounting Type | Plastic enclosure mounting |
| Terminal Type | PE+N | Other | AC-3/9.5KW; AC-23A/11.5KW |
| Number of Poles | 3P | In(A) | 32 |
| Specification | 3LD22【32A】 | Switch Type | Metric thread sealed connection, Transfer switch with selector switch operating mechanism, Handle cannot self-lock, Black handle |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 3LD2265-7UB01 |
Specifications may be subject to change without notice
