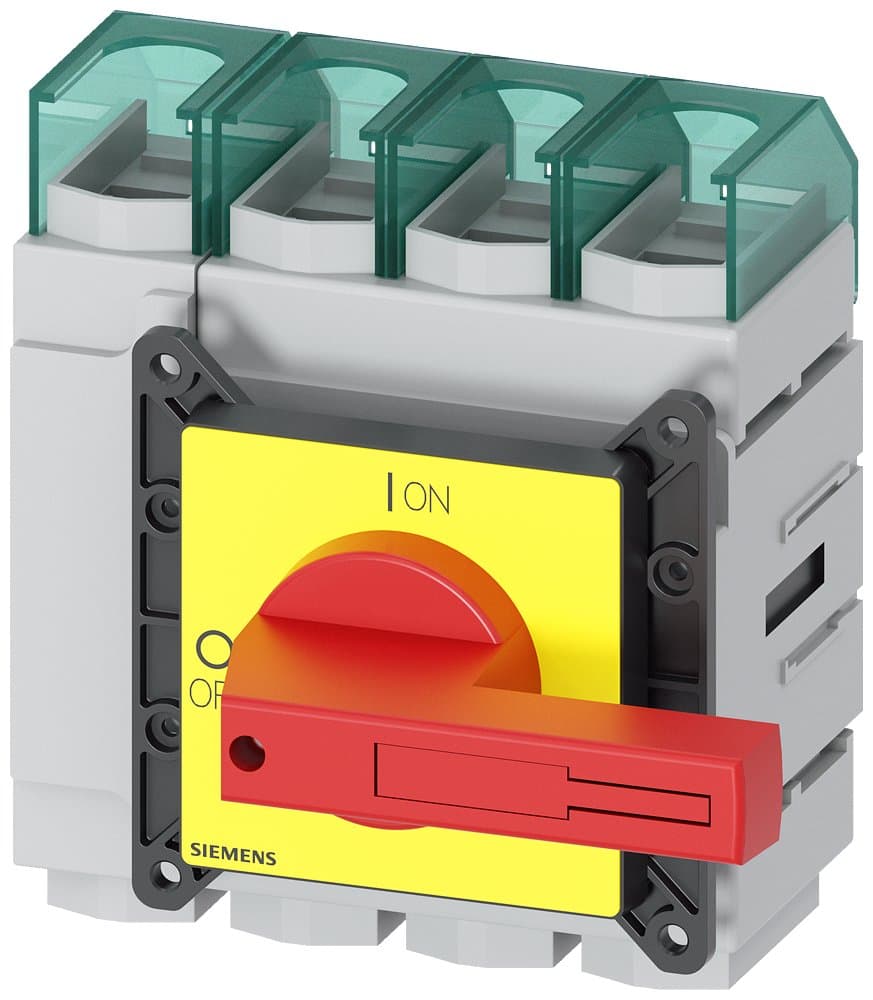

3LD2305-1TL13
Product ID:172380
Updated: 2026/8/25
Key Features
- 1Enhance safety with permanent switch-on/off under load capability.
- 2Mount flexibly via floor, rail, or front options.
- 3Handle high currents from 16 to 250 Amps.
- 4Ensure durability with robust materials for tough environments.
- 5Meet IEC 60947-3 and UL 508 standards for compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 160A, 3P+N, with rotary operation mechanism, red/yellow handle, flush mounting, cabinet door four-hole mounting, AC-3/50KW; AC-23A/75KW | Mounting Type | Flush mounting cabinet door four-hole mounting |
| Other | AC-3/50KW; AC-23A/75KW | Poles | 3P+N |
| In(A) | 160 | Specification | 3LD23【160A】 |
| Switch Type | With rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2305-1TL13 |
Specifications may be subject to change without notice
