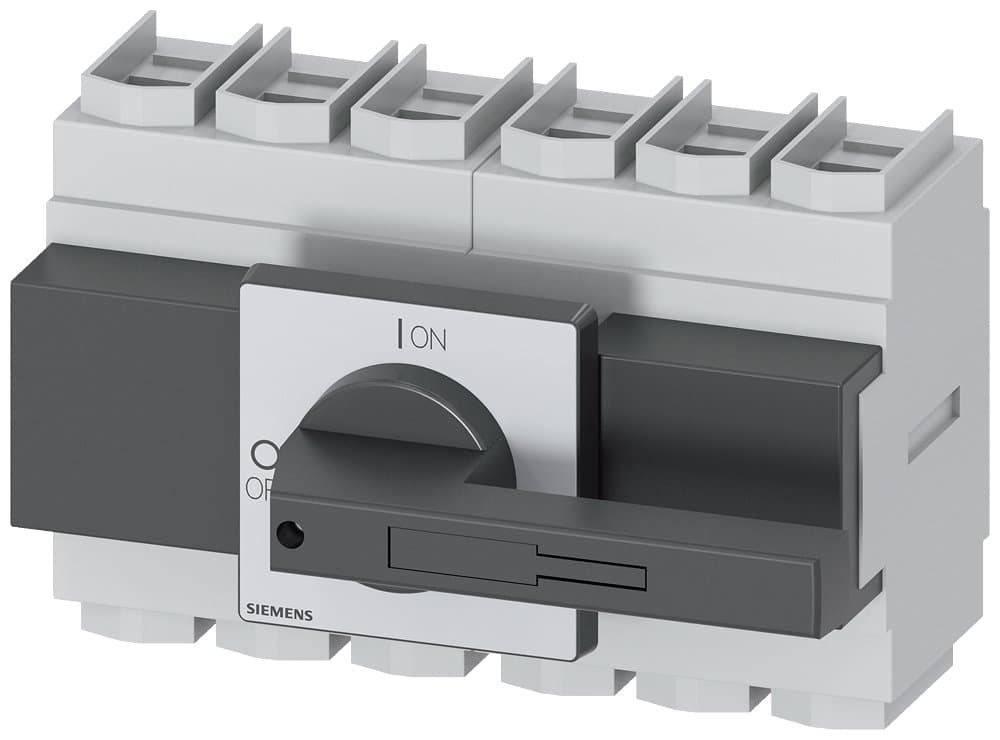

3LD2305-3VK11
Product ID:164094
Updated: 2026/7/3
Key Features
- 1Ensure reliable 160A circuit isolation and switching.
- 2Handle robust 75kW operational power at AC-23A.
- 3Simplify installation with pre-mounted front design.
- 4Operate safely using the intuitive knob mechanism.
- 5Integrate into complex 6-pole electrical systems seamlessly.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 160A, 6P, with rotary operation mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-3/50KW; AC-23A/75KW | Mounting Type | Flush mounted cabinet door with four-hole installation |
| Other | AC-3/50KW; AC-23A/75KW | Number of Poles | 6P |
| In(A) | 160 | Specification | 3LD23【160A】 |
| Switch Type | With rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2305-3VK11 |
Specifications may be subject to change without notice
