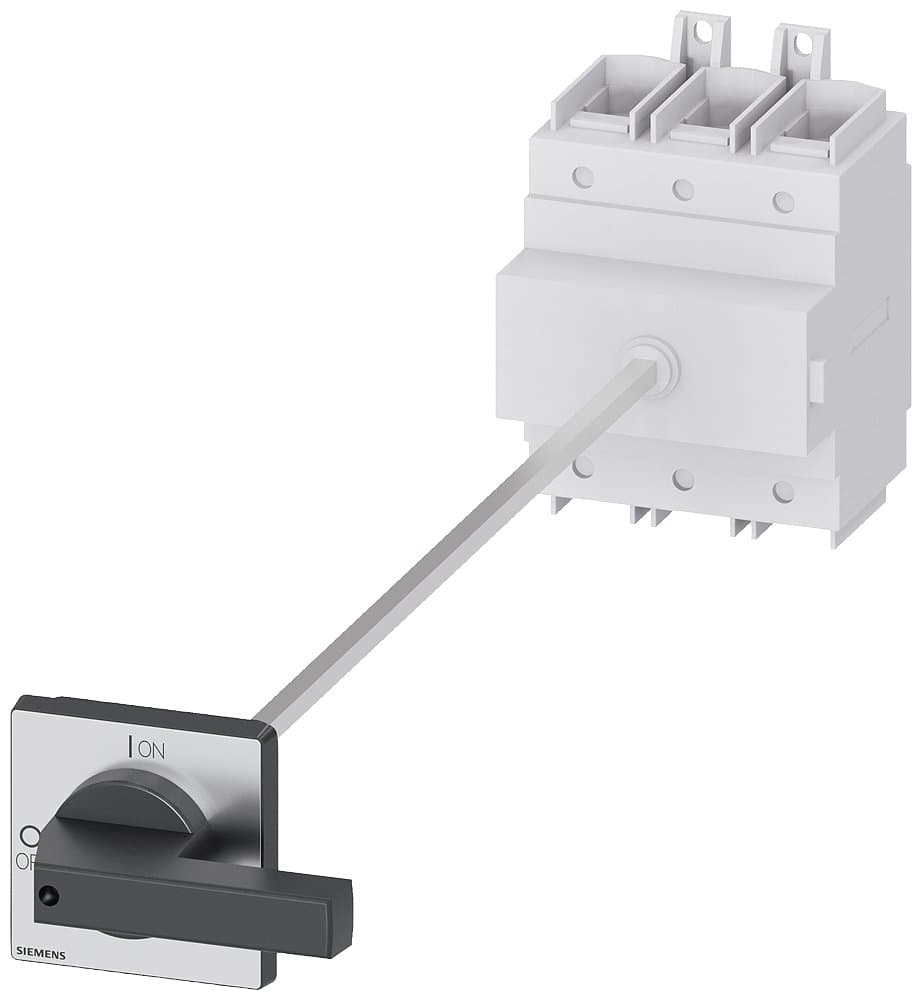

3LD2318-0TK11
Product ID:198318
Updated: 2026/4/4
Key Features
- 1Handle high currents reliably up to 160A. 2、Achieve IP65 protection for harsh industrial environments. 3、Suit both main and auxiliary circuits including motors. 4、Operate easily with a rotary knob actuator. 5、Install securely with floor mounting and door coupling.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 160A, 3P, Rotary Operation Mechanism with Door Coupling, Black Handle, Base-Mounted Installation, Cabinet Door with Four-Hole Fixation, AC-23A/75KW | Installation Type | Base-Mounted Installation, Cabinet Door with Four-Hole Fixation |
| Other | AC-23A/75KW | Number of Poles | 3P |
| In(A) | 160 | Specification | 3LD23【160A】 |
| Switch Type | Rotary Operation Mechanism with Door Coupling, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2318-0TK11 |
Specifications may be subject to change without notice
