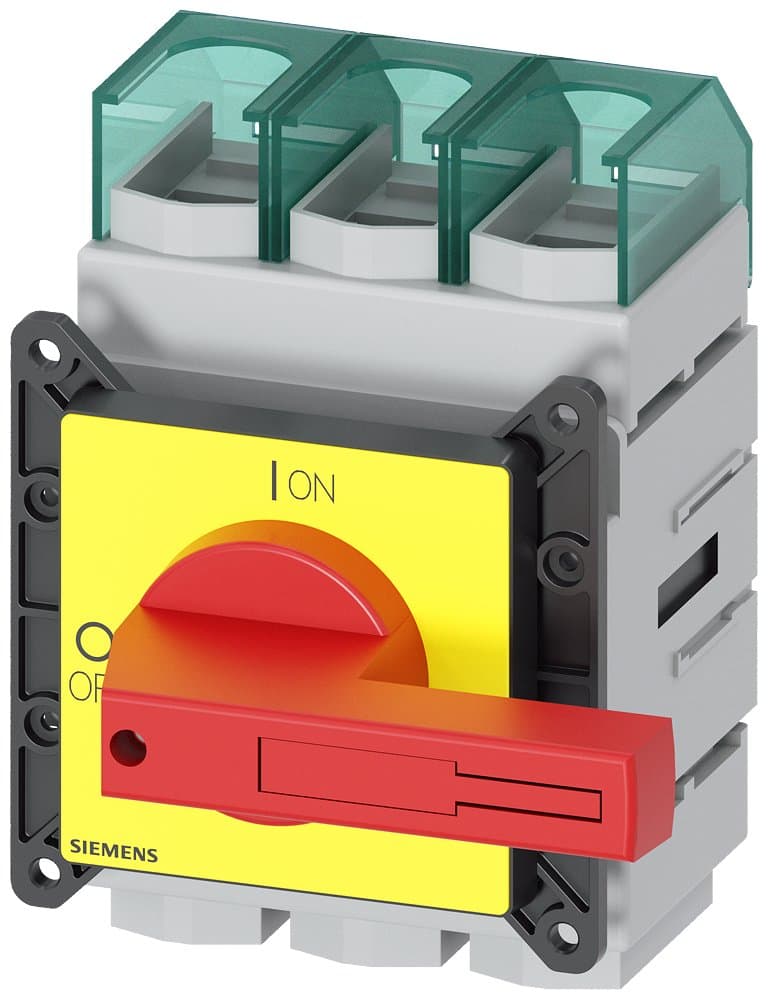

3LD2405-0TK13
Product ID:191576
Updated: 2026/7/3
Key Features
- 1Quickly disconnect power in emergencies for enhanced safety.
- 2Handle robust operations with a high 250A current capacity.
- 3Access conveniently using the front-mounted knob operation.
- 4Suit various three-phase applications with its three-pole configuration.
- 5Deliver efficient 132kW operating power at 400V AC reliably.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 3P, with rotary operation mechanism, red/yellow handle, flush mounting, four-hole installation on cabinet door, AC-3/110KW; AC-23A/132KW | Installation Type: | Flush mounting on cabinet door with four-hole installation |
| Others: | AC-3/110KW; AC-23A/132KW | Poles: | 3P |
| In(A): | 250 | Specification: | 3LD24【250A】 |
| Switch Type: | With rotary operation mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2405-0TK13 |
Specifications may be subject to change without notice
