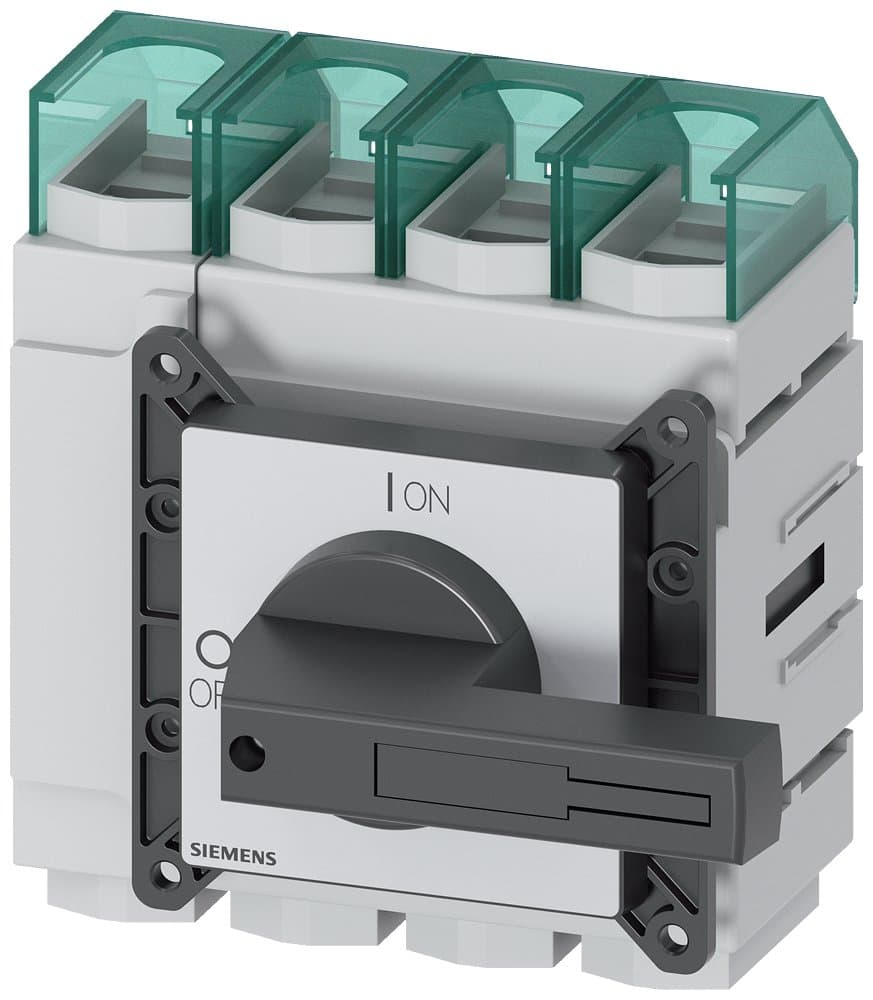

3LD2405-1TL11
Product ID:188987
Updated: 2026/7/3
Key Features
- 1Control high-power circuits reliably with a 250A current rating.
- 2Manage electrical systems robustly using the 4-pole design.
- 3Operate the disconnect switch easily via the knob mechanism.
- 4Access the unit conveniently with its front-mounted design.
- 5Ensure durability and a professional look with the black handle.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 3P+N, with rotary operation mechanism, black handle, flush mounted, four-hole installation on cabinet door, AC-3/110kW; AC-23A/132kW | Installation Type | Flush mounting on cabinet door with four-hole installation |
| Other | AC-3/110kW; AC-23A/132kW | Number of Poles | 3P+N |
| In(A) | 250 | Specification | 3LD24【250A】 |
| Switch Type | With rotary operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2405-1TL11 |
Specifications may be subject to change without notice
