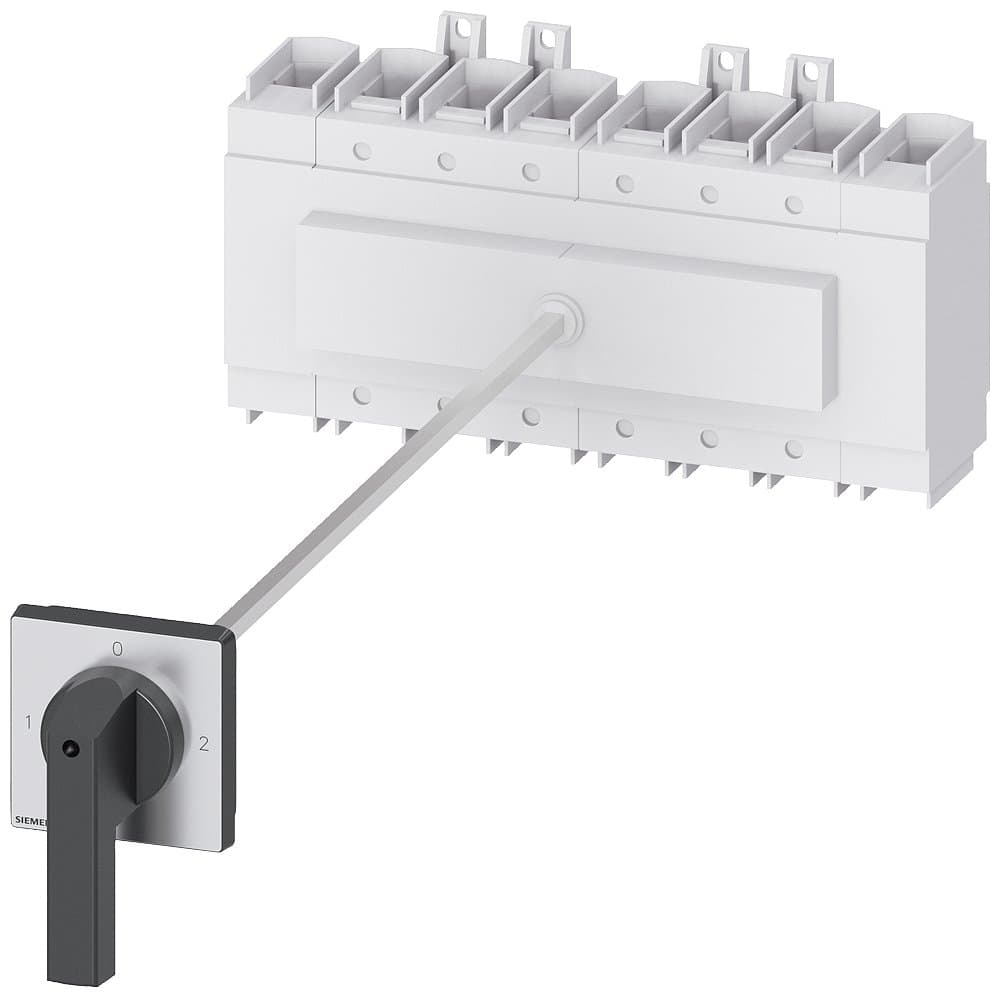

3LD2418-7UL01
Product ID:103361
Updated: 2026/7/2
Key Features
- 1Ensure stable power distribution up to 250 A for critical applications.
- 2Simplify installation with floor mounting and a door-coupling rotary mechanism.
- 3Protect against dust and water ingress with a robust IP65 enclosure.
- 4Secure operation by locking the mechanism in 0 position with up to 3 padlocks.
- 5Achieve fast, efficient switching to minimize system downtime.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 3P+N, transfer switch with selector switch operation mechanism, black handle, flush mounting, four-hole fixation in cabinet door, AC-3/110KW; AC-23A/132KW | Installation Type: | Flush mounting in cabinet door with four-hole fixation |
| Other: | AC-3/110KW; AC-23A/132KW | Poles: | 3P+N |
| In(A): | 250 | Specification: | 3LD24【250A】 |
| Switch Type: | Transfer switch with selector switch operation mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2418-7UL01 |
Specifications may be subject to change without notice
