Key Features
- 1Execute emergency power cutoff quickly for enhanced safety.
- 2Handle high currents up to 250A for robust performance.
- 3Mount easily on DIN rails for efficient panel installation.
- 4Protect against dust and water splashes with IP44 rating.
- 5Operate stably from -25°C to 55°C ensuring reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 250A, 3P, with shield plate and selector switch, red/yellow handle, distribution panel mounting, AC-23A/132KW | Mounting Type: | Distribution Panel Mounting |
| Other: | AC-23A/132KW | Poles: | 3P |
| In(A): | 250 | Specification: | 3LD24【250A】 |
| Switch Type: | With Shield Plate and Selector Switch, Red/Yellow Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |

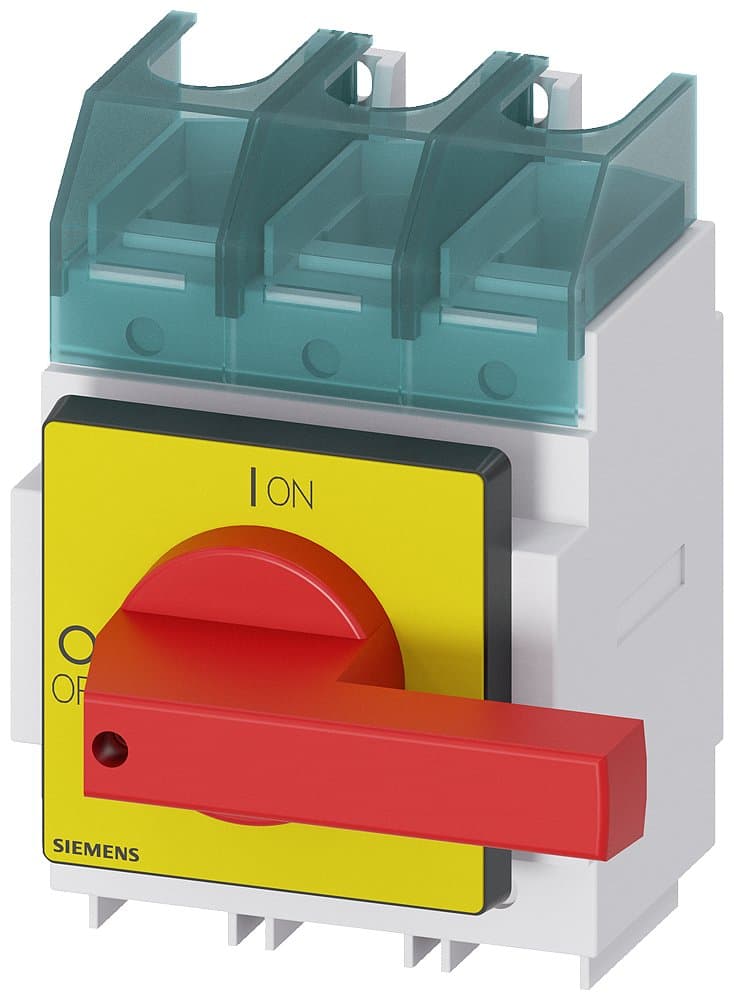

| AL | N | Model Number | 3LD2430-0TK13 |
Specifications may be subject to change without notice
