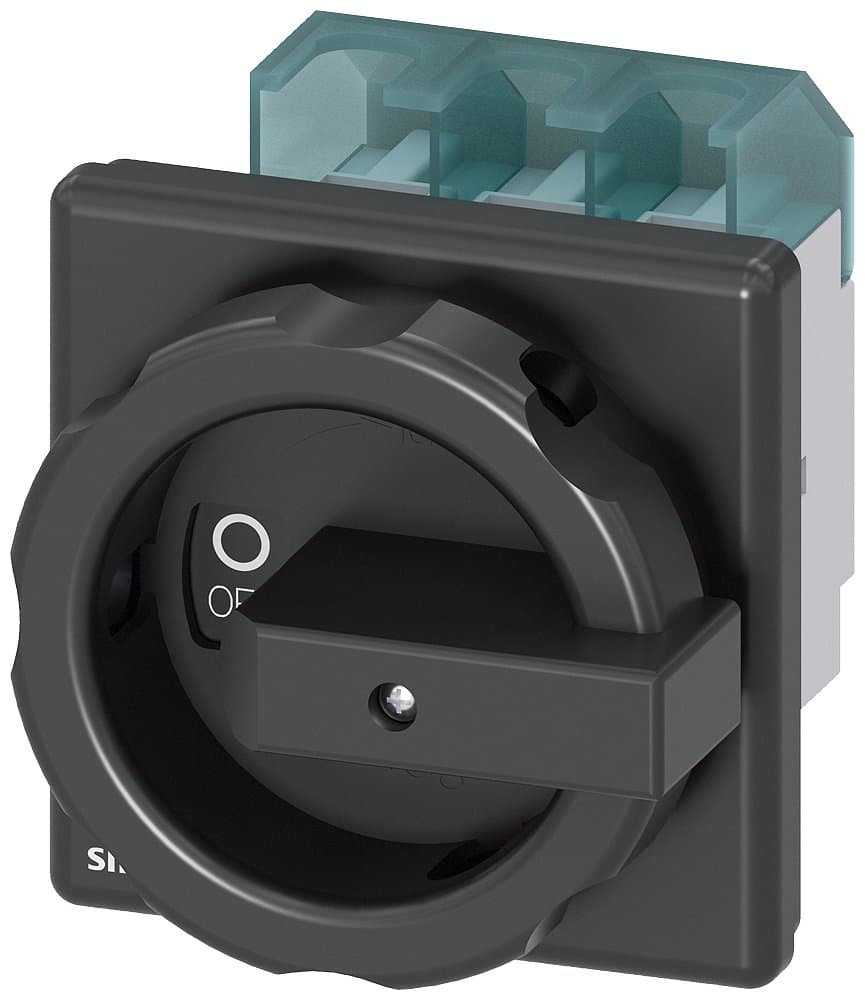

3LD2504-0TK51
Product ID:202120
Updated: 2026/7/3
Key Features
- 1Control high-power circuits reliably with a 63 A rated current.
- 2Ensure safe isolation using the robust 3-pole configuration.
- 3Operate easily with the front-mounted rotary drive mechanism.
- 4Integrate seamlessly with its black color and 4-hole handle mounting.
- 5Deploy in distribution boards and emergency stop installations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator switch, main and emergency stop switch, 3LD2, 63A, 3P, with rotary operating mechanism, black handle, flush-mounted, four-hole mounting on cabinet door, AC-3/18.5KW; AC-23A/22KW | Installation Type: | Flush-mounted cabinet door with four-hole mounting |
| Other: | AC-3/18.5KW; AC-23A/22KW | Number of Poles: | 3P |
| In(A): | 63 | Specification: | 3LD25【63A】 |
| Switch Type: | With rotary operating mechanism, black handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2504-0TK51 |
Specifications may be subject to change without notice
