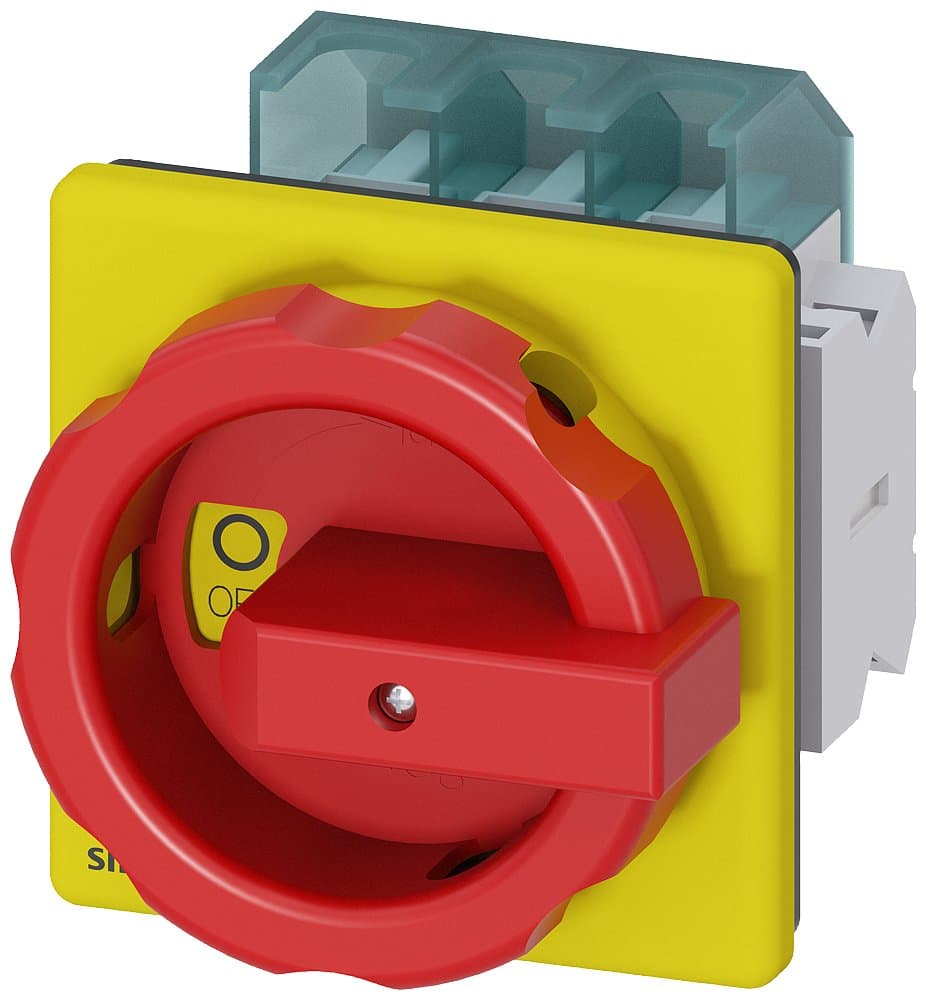

3LD2504-1TP53
Product ID:121529
Updated: 2026/7/2
Key Features
- 1Ensure reliable emergency switching-off with a robust 3-pole configuration.
- 2Handle high currents up to 63 A for demanding operational environments.
- 3Simplify installation with a convenient front-mounted panel design.
- 4Manage significant loads rated at 22 kW operating power.
- 5Operate reliably across a wide temperature range from -25°C to 55°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage (V) | 690 | Insulation Voltage (V) | 690 |
| Description | Isolator switch, main control and emergency stop switch, 3LD2, 63A, 3P, with rotary operating mechanism, red/yellow handle, flush mounted, four-hole installation on cabinet door, AC-23A/22KW, 1NO+1NC | Installation Type | Flush mounted cabinet door with four-hole installation |
| Other | AC-23A/22KW, 1NO+1NC | Poles | 3P |
| In(A) | 63 | Specification | 3LD25【63A】 |
| Switch Type | With rotary operating mechanism, red/yellow handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2504-1TP53 |
Specifications may be subject to change without notice
