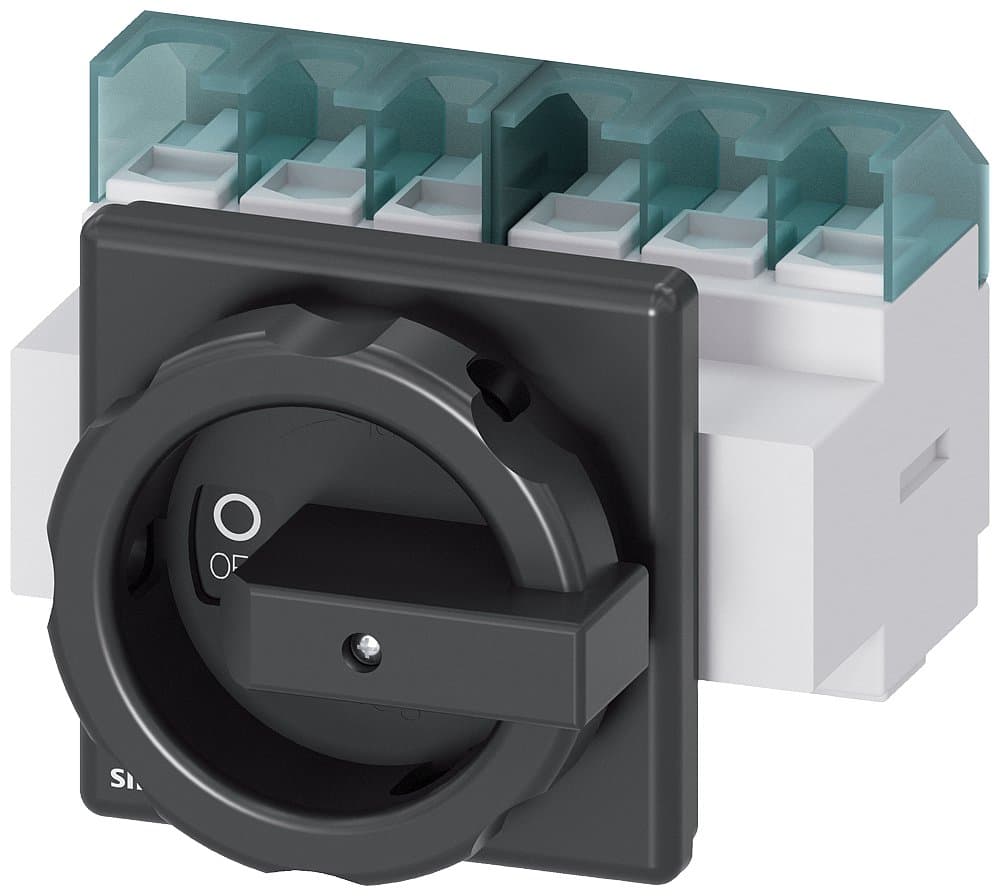

3LD2504-3VK51
Product ID:213394
Updated: 2026/4/3
Key Features
- 1Deliver 22kW operating power at AC-23A, 400V. 2、Feature a front-mounted rotary operating mechanism with a black handle. 3、Ensure reliable operation in harsh industrial environments. 4、Simplify installation with 4-hole front mounting. 5、Enhance safety with pad lockable OFF position.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| AC Rated Voltage(V): | 690 | Insulation Voltage(V): | 690 |
| Description | Isolator Switch, Main and Emergency Stop Switch, 3LD2, 63A, 6P, With Rotary Operating Mechanism, Black Handle, Flush Mounted, Four-Hole Fixation on Cabinet Door, AC-3/18.5KW; AC-23A/22KW | Installation Type: | Flush Mounting on Cabinet Door with Four-Hole Fixation |
| Other: | AC-3/18.5KW; AC-23A/22KW | Number of Poles: | 6P |
| In(A): | 63 | Specification: | 3LD25【63A】 |
| Switch Type: | With Rotary Operating Mechanism, Black Handle | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 3LD2504-3VK51 |
Specifications may be subject to change without notice
